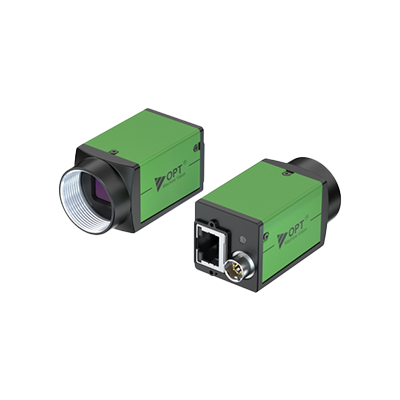

CC1 Series GigE Industrial Area Scan Camera
High-Performance Industrial Imaging Solutions
Professional-grade GigE industrial area scan cameras with high resolution, fast frame rates, and robust design for demanding industrial applications.
Product Overview
Advanced Industrial Imaging
The CC1 Series offers high-performance GigE industrial area scan cameras with various resolution options for machine vision applications.
With features like Gigabit Ethernet interface, 256MB onboard cache, multiple triggering options, and ISP functions, these cameras provide reliable and efficient solutions for industrial automation and quality control.
- Gigabit Ethernet interface with up to 100m transmission
- 256MB onboard cache for data transfer
- Multiple triggering functions
- Compatible with GigE Vision 2.0 and GenICam
- Compact 29×29mm design
Key Features
Gigabit Ethernet
Gigabit Ethernet interface with up to 100 meters transmission distance for flexible installation.
256MB Onboard Cache
Large 256MB onboard cache for data transfer or image retransmission in burst mode.
Multiple Triggering
Supports software trigger, hardware trigger, and free-run acquisition modes.
Image Processing
ISP functions including gamma correction, contrast adjustment, brightness adjustment, and LUT.
Compact Design
Compact 29mm×29mm×42mm size with C-mount lens for space-constrained applications.
Industry Standards
Compliant with GigE Vision 2.0 and GenICam standards for easy integration.
Product Advantages
High Performance
High frame rates up to 303 fps with various resolution options for different application needs.
Fast Data Transfer
Gigabit Ethernet with large onboard cache ensures fast and reliable data transfer.
Industrial Grade
Robust design suitable for demanding industrial environments with wide operating temperature range.
Easy Integration
Compatible with industry standards and multiple programming languages for seamless integration.
Technical Specifications
| Model | Resolution | Frame Rate | Sensor | Pixel Size | Type |
|---|---|---|---|---|---|
| OPT-CC1-M004-GG1-10 | 720×540 | 303.21 fps | IMX287 | 6.9 μm | Monochrome |
| OPT-CC1-M013-GG6-11 | 1280×1024 | 89 fps | SC130GS | 4 μm | Monochrome |
| OPT-CC1-M050-GG1-11 | 2448×2048 | 23.5 fps | IMX264 | 3.45 μm | Monochrome |
| OPT-CC1-M200-GR1-10 | 5472×3648 | 5.9 fps | IMX183 | 2.4 μm | Monochrome |
| OPT-CC1-C004-GG1-00 | 720×540 | 303.21 fps | IMX287 | 6.9 μm | Color |
| OPT-CC1-C050-GG1-00 | 2448×2048 | 23.5 fps | IMX264 | 3.45 μm | Color |
| OPT-CC1-C200-GR1-00 | 5472×3648 | 5.9 fps | IMX183 | 2.4 μm | Color |
Dimensions & Interface
Compact Industrial Design
The CC1 Series features a compact 29mm×29mm×42mm design (excluding lens mount and rear shell interface) with a weight of less than 95g.
With C-mount lens compatibility and standard industrial interfaces, these cameras are ideal for space-constrained applications.
I/O Interface
- 6-pin Hirose interface
- 1 optically isolated input
- 1 optically isolated output
- 1 configurable input/output without optical isolation
Industry Applications
Factory Automation
Precision inspection and quality control in automated manufacturing processes.
Robotic Vision
Guidance and positioning for robotic systems in pick-and-place applications.
Medical Imaging
High-resolution imaging for medical devices and diagnostic equipment.
Scientific Research
High-precision imaging for scientific research and laboratory applications.
