3D Structured Light & Speckle Cameras
High-Precision 3D Imaging for Industrial Applications
Professional-grade 3D cameras with structured light and speckle technologies, delivering high accuracy, fast imaging, and robust performance for various industrial applications.
Product Overview
Advanced 3D Imaging Technology
Our 3D camera series offers cutting-edge structured light and speckle technologies for precise 3D imaging in industrial applications.
With features like FPGA edge computing, factory pre-calibration, and compatibility with Smart3 algorithm platform, these cameras provide reliable and efficient solutions for automation and quality control.
- High precision with sub-micron repeatability
- Fast imaging with FPGA processing
- Excellent ambient light resistance
- Factory pre-calibrated for quick deployment
- Compatible with Smart3 algorithm platform

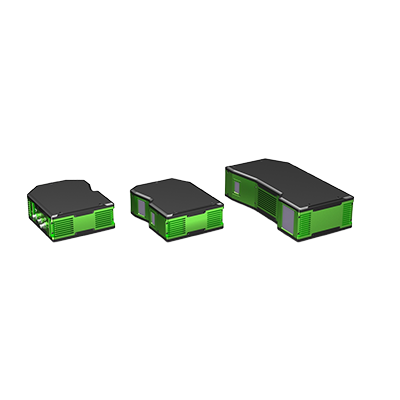

Product Series

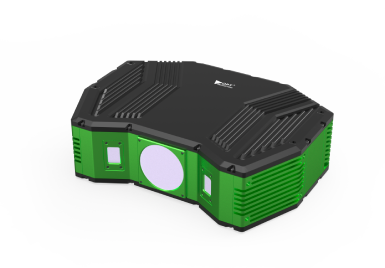

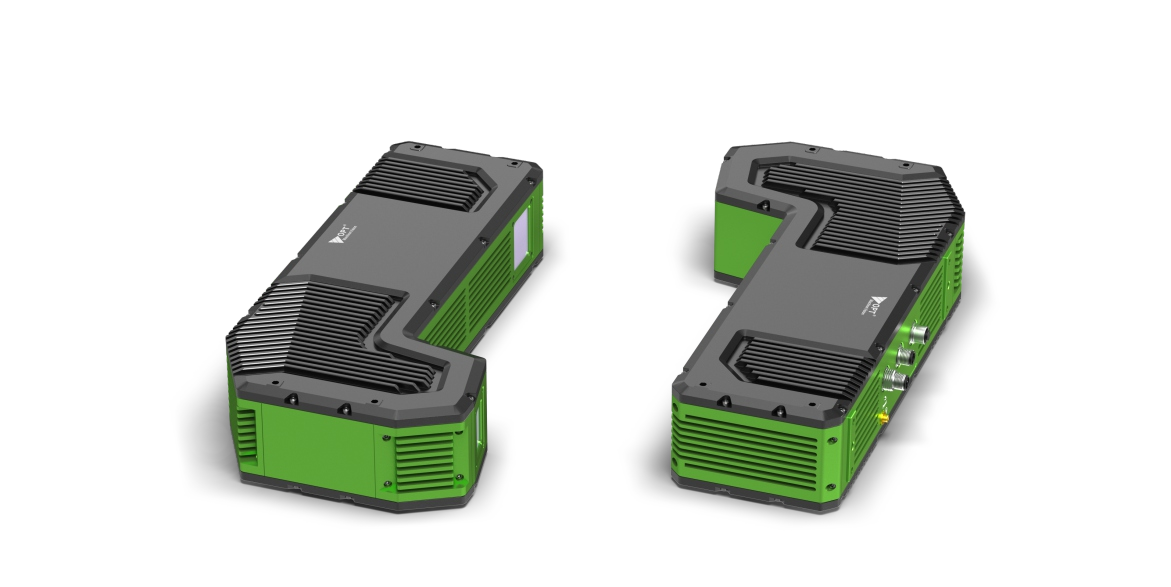

FPB1 Series
Dual Projection Structured Light Cameras with high precision and excellent ambient light resistance.
- Dual optical projector technology
- Multi-angle 3D point cloud fusion
- Small field of view, high precision
- DLP chips with structured light
- Factory pre-calibrated

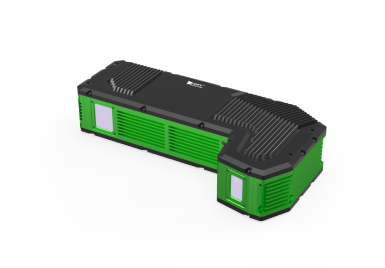

FPC1 Series
Single Projection Structured Light Cameras with high frame rate and precision.
- Industrial-grade structured light
- High frame rate and precision
- Rich algorithm functions
- Multiple 3D algorithms
- FPGA edge computing

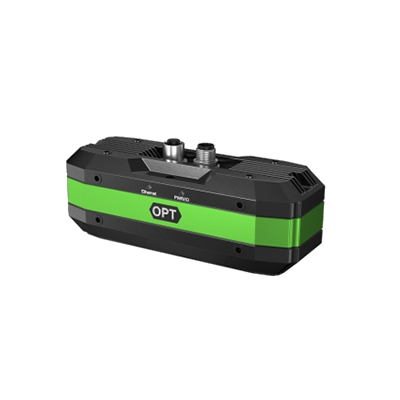

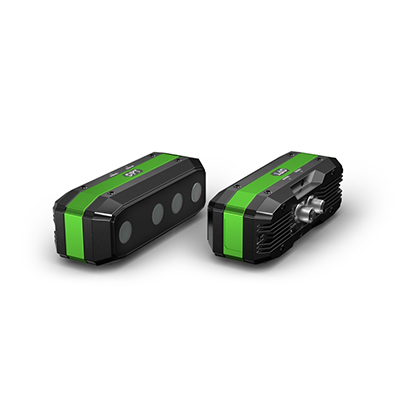

LSA1 Series
Binocular Speckle Structured Light Cameras with ultra-wide field of view.
- High frame rate, ultra-wide FOV
- Extended depth of field
- Stereo imaging with color camera
- Single-capture imaging
- Compact industrial design
Key Features
FPGA Edge Computing
Built-in processing chips with FPGA edge computing platform for faster imaging and direct output of high-precision 3D point clouds.
Ambient Light Resistance
Excellent performance in various lighting conditions with robust ambient light resistance.
High-Speed Imaging
Fast full-cycle frame rates for efficient 3D data acquisition in dynamic applications.
Structured Light Technology
DLP chips and structured light projection for clear point cloud images in a single shot.
Easy Integration
Factory pre-calibrated cameras for direct installation and use, ensuring quick deployment.
Smart3 Platform
Compatible with OPT's Smart3 algorithm platform for zero-code, visual graphical programming.
Product Advantages
High Precision
Sub-micron repeatability and high accuracy for demanding measurement applications.
Fast Deployment
Factory pre-calibration and plug-and-play operation minimize setup time.
Industrial Grade
Robust design suitable for demanding industrial environments.
Easy Integration
Comprehensive hardware and software integration for seamless implementation.
Industry Applications
Quality Control
Precision measurement and inspection of manufactured components with high accuracy 3D imaging.
Robotic Guidance
3D vision for robotic systems in pick-and-place, assembly, and automation applications.
Dimensional Analysis
Accurate 3D measurement of objects for reverse engineering and quality verification.
Object Recognition
3D object detection and classification for automated sorting and identification systems.
Technical Specifications
| Model | Technology | Reference Distance | FOV | Frame Rate | Z-axis Repeatability |
|---|---|---|---|---|---|
| OPT-FPB1-008-02 | Dual Projection | 76mm | 19.99×16.72mm | 2FPS | 0.7μm |
| OPT-FPB1-010-02 | Dual Projection | 100mm | 42.36×35.44mm | 2FPS | 4μm |
| OPT-FPC1-020-02 | Single Projection | 194mm | 59.98×43.93mm | ≤4FPS | 0.13μm |
| OPT-FPC1-032-02 | Single Projection | 320mm | 193.88×142.00mm | ≤4FPS | 1.6μm |
| OPT-FPC1-120-02 | Single Projection | 1200mm | 593.92×435.00mm | ≤4FPS | 58μm |
| OPT-LSA1-200-02 | Binocular Speckle | 2000mm | 2239×2130mm | ≤15FPS | 1mm |

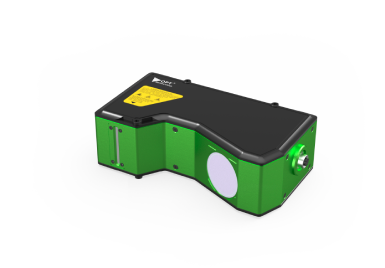

3D Structured Light Sensor
