Laser Displacement Sensors
High-Performance Measurement Solutions for Industrial Automation
Advanced laser displacement sensors with sub-micron resolution, high-speed sampling, and robust design for demanding industrial environments. Featuring multiple output options, IP67 protection, and easy integration capabilities.
Product Overview

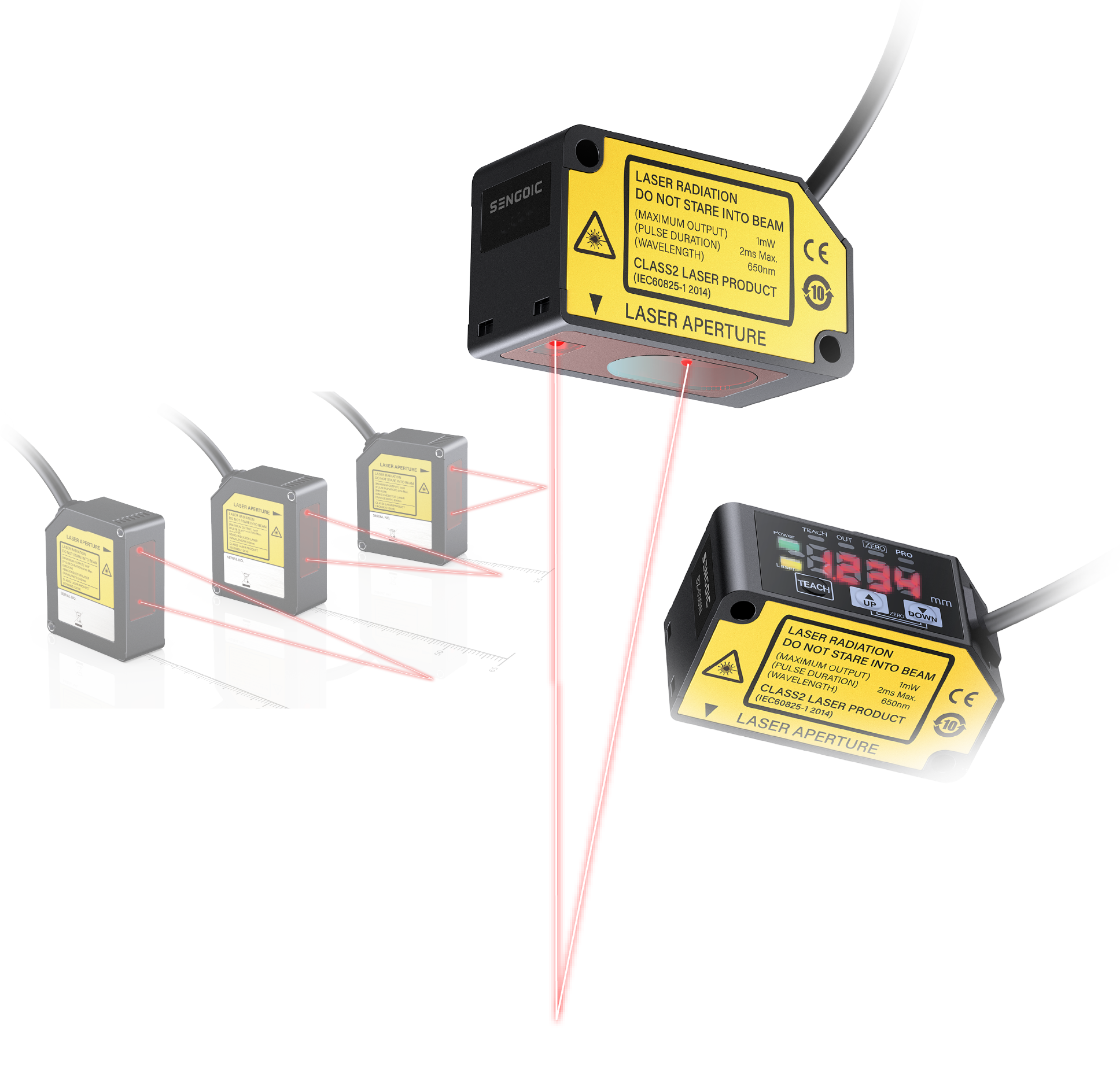

Precision Laser Measurement Technology
SINGOIC laser displacement sensors offer high-performance measurement solutions with exceptional accuracy and stability for various industrial applications.
With features like SUPER-POINT-A1 algorithm, IP67 protection, and multiple output options, these sensors provide reliable and efficient solutions for automation and quality control.
- Sub-micron resolution for accurate measurements
- Up to 2000Hz sampling rate for fast-moving objects
- IP67 protection for harsh industrial environments
- Multiple output options (RS485, analog, digital)
- Quick-Lock connector for easy installation
Product Series

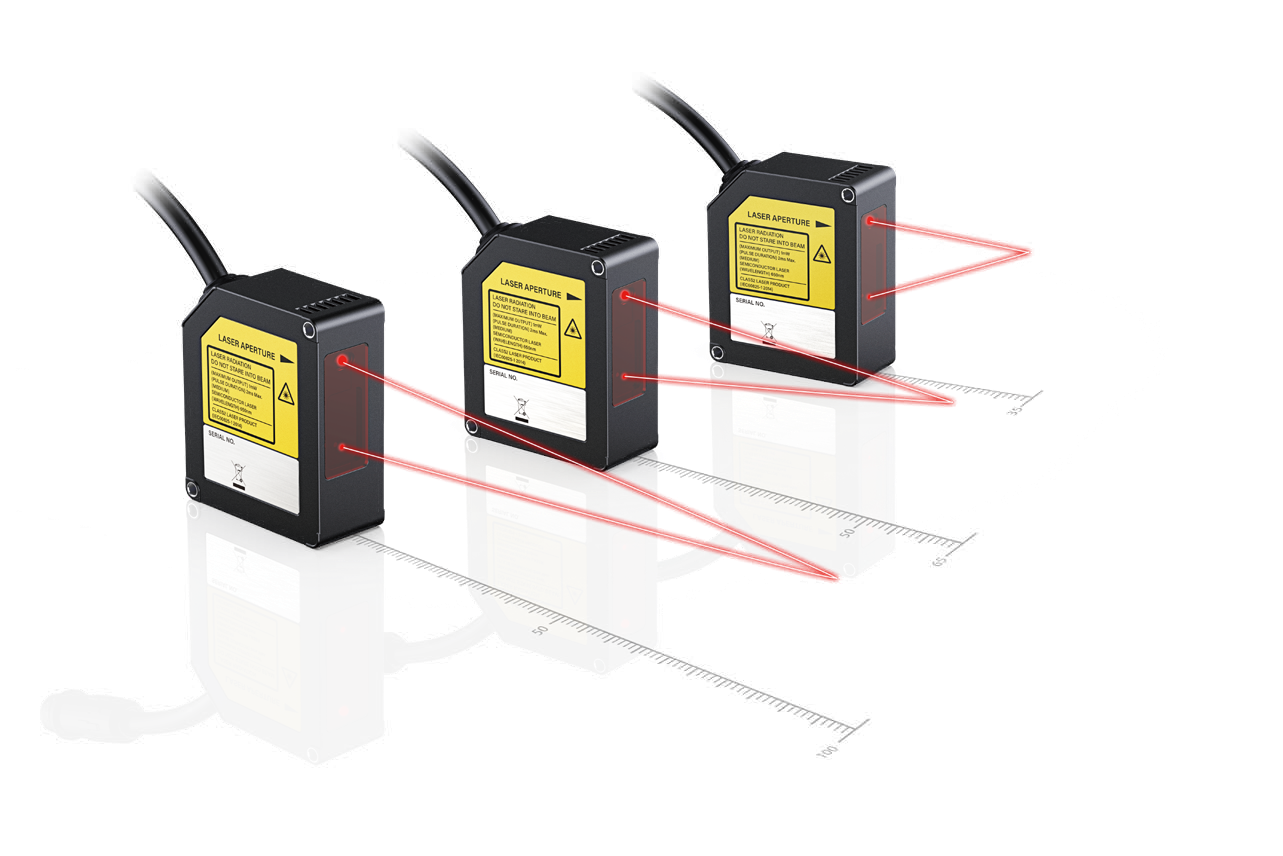

tG51HZ Series
High-performance laser displacement sensors with exceptional cost-performance ratio.
- IP67 protection rating
- SUPER-POINT-A1 algorithm
- Up to 2000Hz sampling rate
- Multiple output options
- Quick-Lock connector

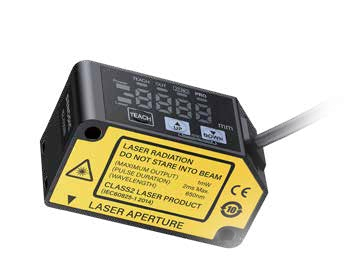

BZ Series
Compact laser displacement sensors with precision optical structure.
- Compact and lightweight design
- CE, RoHS, and FDA certified
- Aluminum housing
- User-friendly interface
- Excellent temperature adaptation
TZ Series
Ultra-high precision laser displacement sensors for demanding applications.
- Linear accuracy: ±0.03% F.S.
- Repeatability: 0.2μm
- Sampling rate: up to 150kHz
- Area array CMOS sensor
- High-flexibility cable
Key Features
Advanced Algorithm
SUPER-POINT-A1 algorithm ensures stable performance on various surfaces and materials.
High Protection Rating
IP67 protection ensures reliable operation in harsh industrial environments.
High-Speed Sampling
Up to 2000Hz sampling rate for accurate measurement of fast-moving objects.
Multiple Output Options
Support for RS485, analog, and digital outputs for flexible integration.
Easy Installation
Quick-Lock connector and compact design for simple installation and setup.
Industry Certifications
CE, RoHS, and FDA certified for quality assurance and compliance.
Product Advantages
High Precision
Sub-micron resolution and high linearity for accurate measurements.
High Speed
Fast sampling rates up to 2000Hz for dynamic measurement applications.
Robust & Reliable
IP67 protection and rugged design for demanding industrial environments.
Easy Integration
Multiple output options and compact design for simple system integration.
Industry Applications

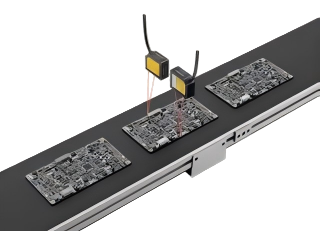

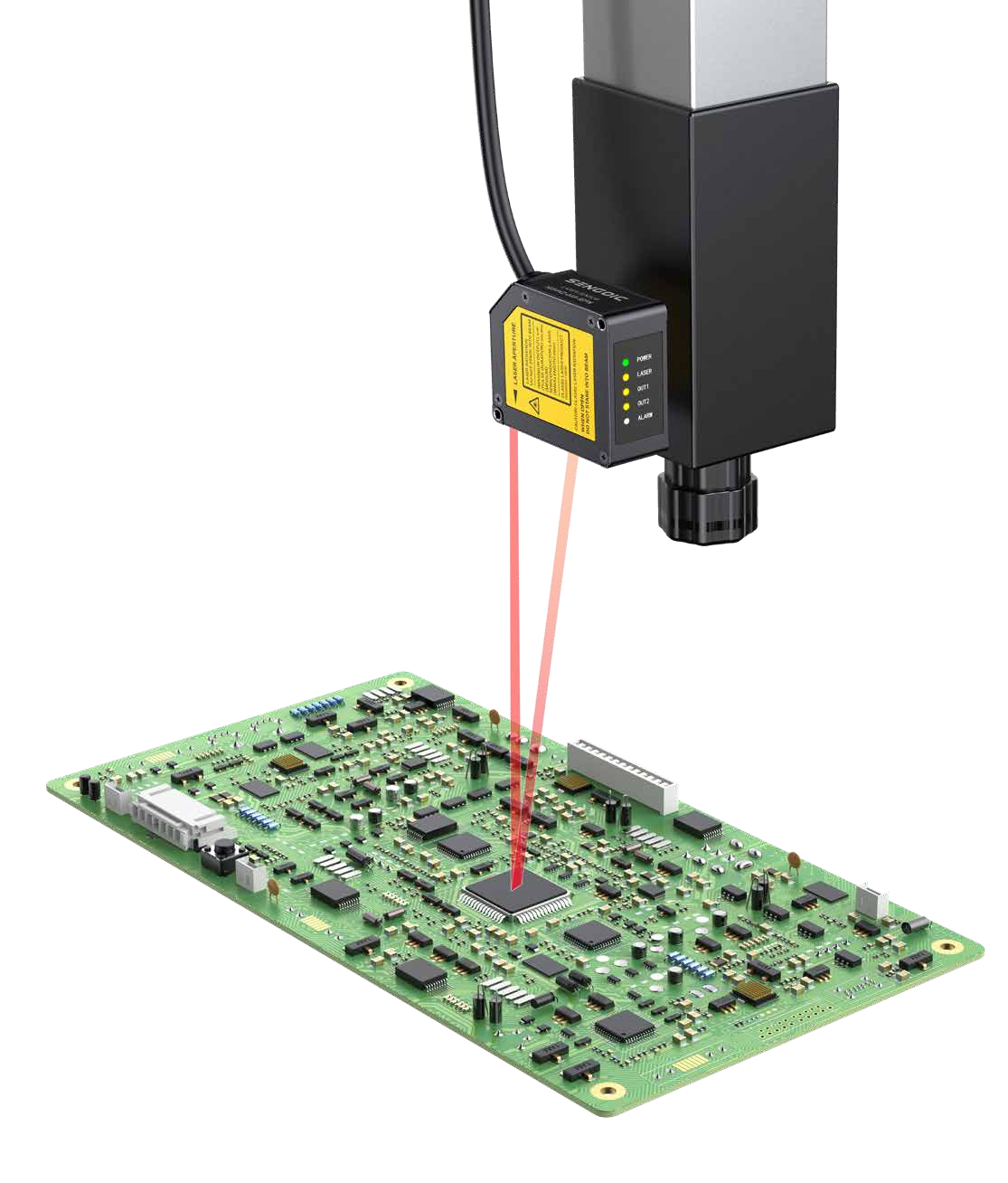

PCB Width/Position Detection
Precise measurement of PCB dimensions and component placement with high accuracy.

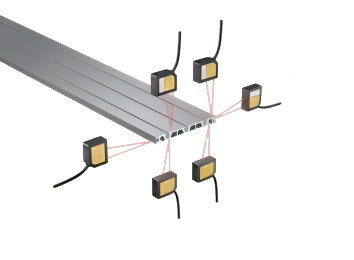

Profile Dimension Measurement
Accurate measurement of extruded profiles and complex shapes in manufacturing.
Material Thickness Measurement
Non-contact thickness measurement of various materials in production lines.

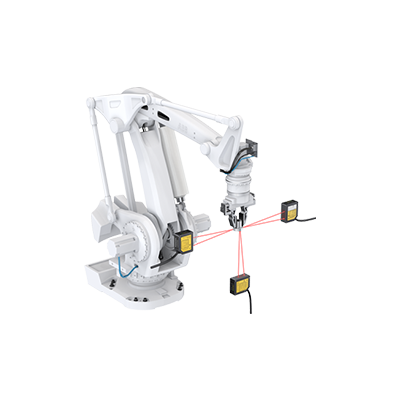

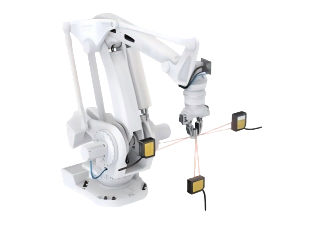

Robotic Guidance
Precise positioning and guidance for robotic systems in automation applications.
Technical Specifications
| Model Series | Measurement Range | Linearity | Repeatability | Sampling Rate | Spot Type |
|---|---|---|---|---|---|
| tG51HZ-035 | 35±5mm | ±0.1% F.S. | 1μm | Up to 2000Hz | Point/Line |
| tG51HZ-065 | 65±20mm | ±0.1% F.S. | 1μm | Up to 2000Hz | Point/Line |
| tG51HZ-100 | 100±40mm | ±0.1% F.S. | 1μm | Up to 2000Hz | Point/Line |
| BZ Series | 20-400mm | ±0.1-0.2% F.S. | 10-50μm | Configurable | Point |
| TZ Series | 30-85mm | ±0.03% F.S. | 0.2μm | Up to 150kHz | Point/Line |
