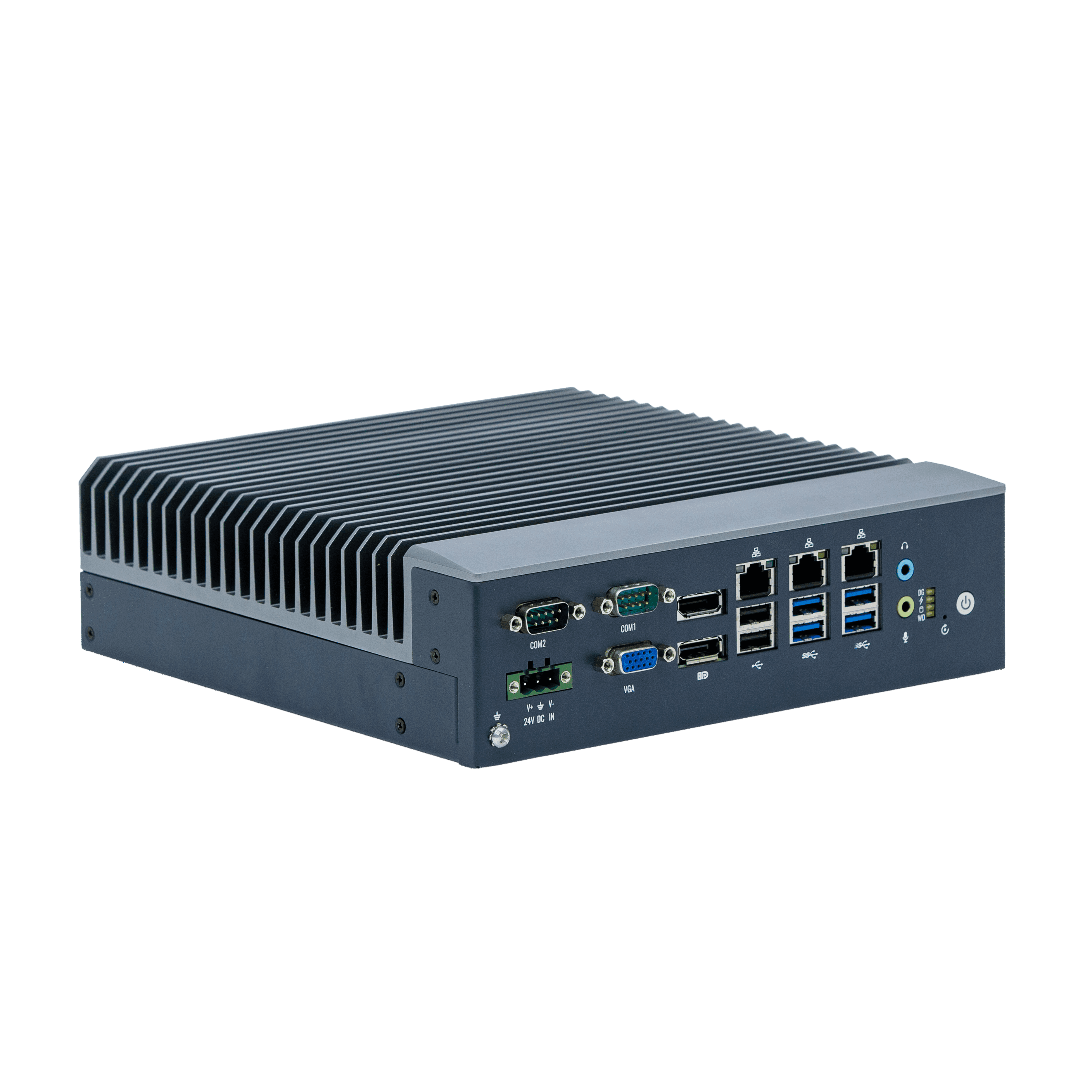

E500 Series
6th ~9th Generation Intel® Core™ Processors Compact and Fanless Embedded PC
High-performance embedded computer designed for industrial environments, providing rich interfaces and reliable performance for various industrial automation and edge computing applications.

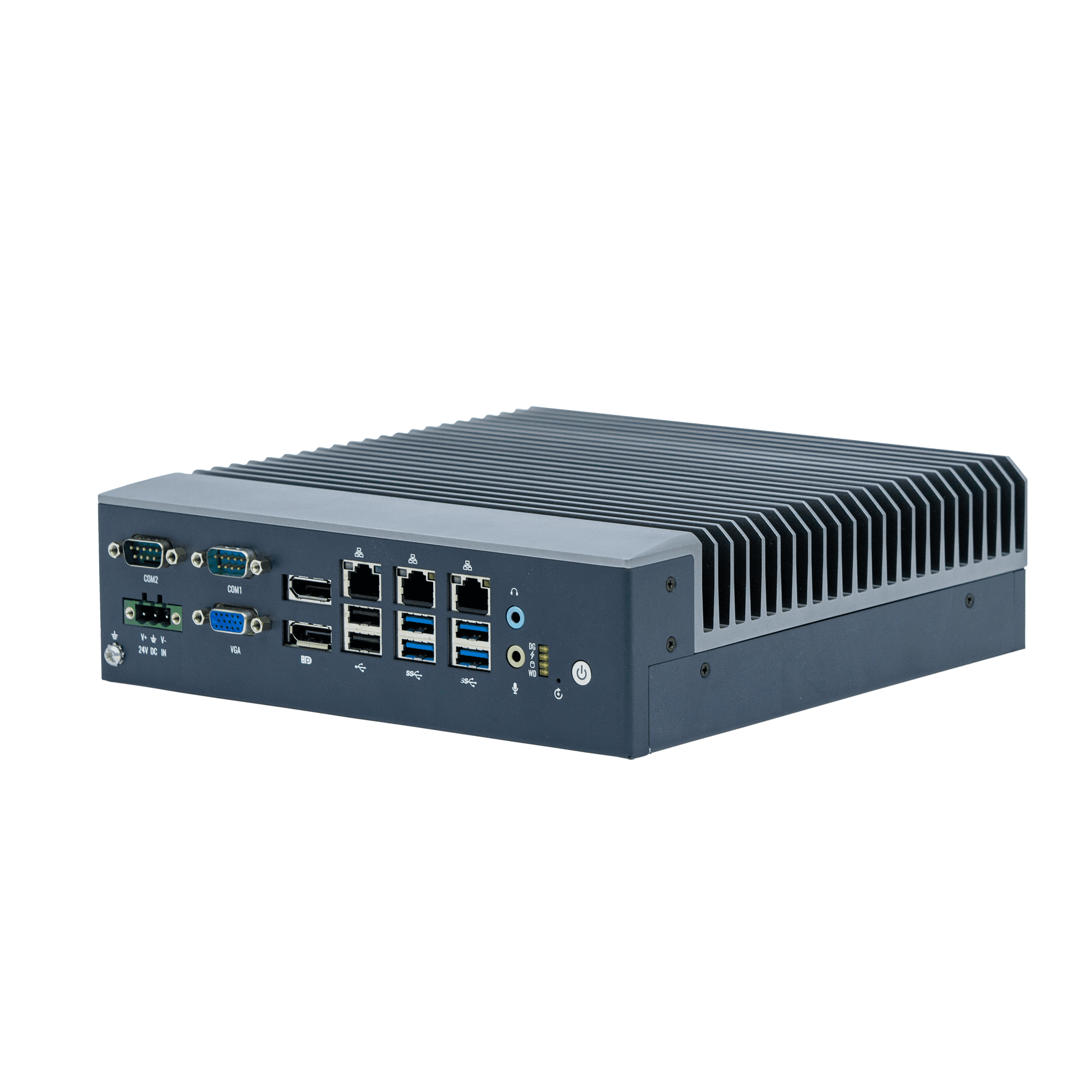

Product Overview
High Performance Embedded Industrial PC
The E500 Series is based on 6th~9th Generation Intel® Core™ Desktop Processors with H110 chipset, offering powerful data processing and computing capabilities with excellent performance in embedded applications.
Compact fanless design with rugged aluminum alloy housing, suitable for various industrial environments, providing long-term stable operation.
- 6th~9th Generation Intel® Core™ Series Processors
- Dual-channel DDR4 memory, up to 64GB
- Rich I/O interfaces: 3 GbE LAN, 6 USB, 2 serial ports
- Fanless design, low power consumption
- Industrial-grade protection, suitable for harsh environments
Key Features
High-Performance Processors
Equipped with 6th~9th Generation Intel® Core™/Pentium®/Celeron® series processors, supporting up to 65W TDP, providing powerful computing performance.
Large Memory Capacity
Dual-channel DDR4 SO-DIMM memory slots, supporting up to 64GB memory capacity to meet the memory requirements of complex applications.
Multi-Display Support
Provides 2 DisplayPort and 1 VGA interface, supporting dual independent displays with resolutions up to 4096x2304@60Hz.
Rich Network Interfaces
3 Gigabit Ethernet interfaces (2 Intel i210, 1 Intel i219) to meet multiple network connection requirements.
Multiple Expansion Interfaces
Provides 4 USB 3.0, 2 USB 2.0, 2 serial ports (RS-232/422/485), supports 4G and Wi-Fi module expansion.

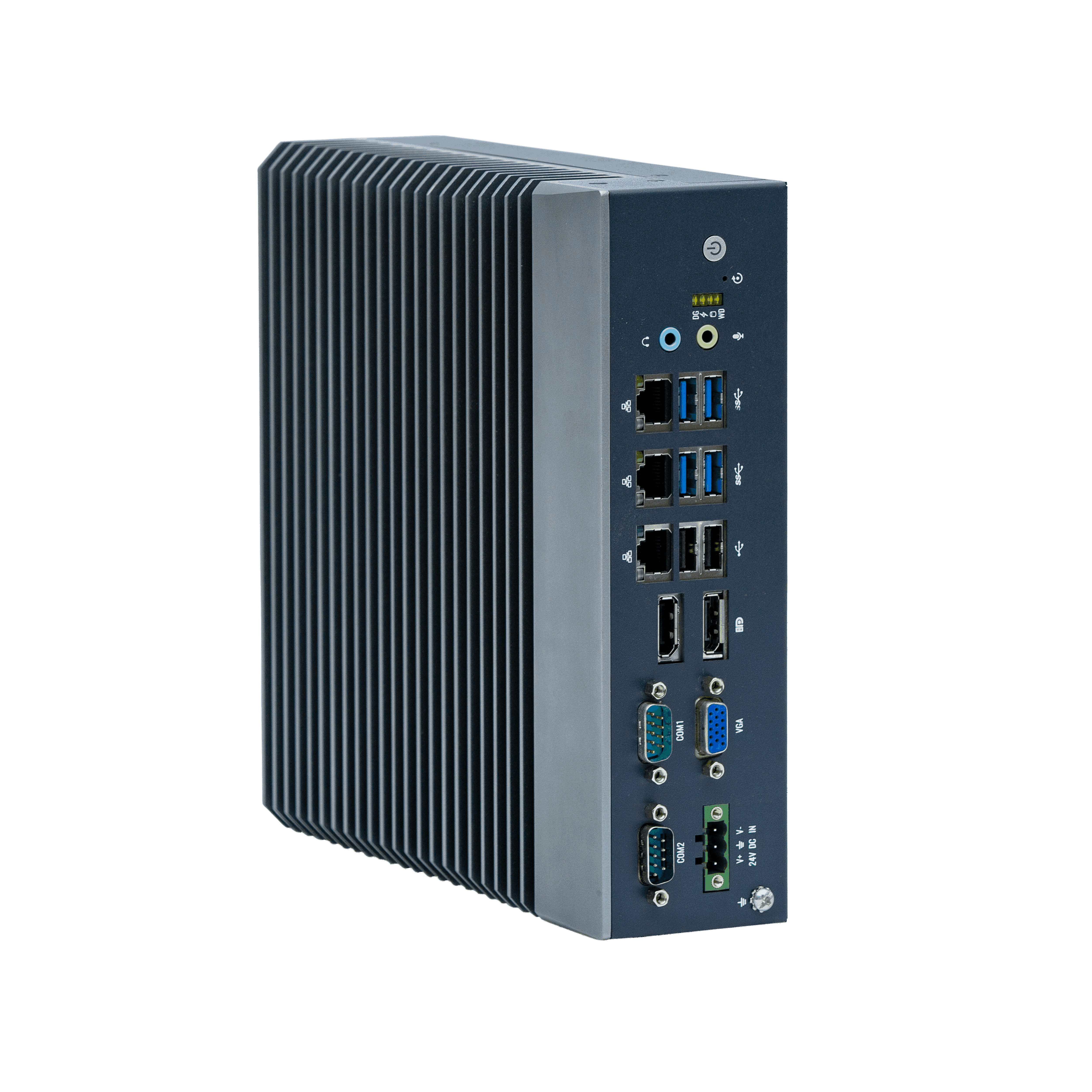

Rugged Design
Aluminum alloy housing, fanless design, wall-mounting support, suitable for industrial environment temperatures from -20~50°C.
Technical Specifications
| Item | Specification |
|---|---|
| Processor System | |
| CPU | 6th~9th Generation Intel® Core™ Series CPU |
| TDP | Max 65W |
| Socket | LGA1151 |
| Chipset | H110 |
| BIOS | AMI 8MB UEFI BIOS |
| Memory | |
| Technology | Dual channel 260-PIN DDR4 SO-DIMM |
| Capacity | Max 64GB |
| External I/O | |
| Display | 2 x DP (up to 4096x2304@60Hz), 1 x VGA (up to 1920x1080@60Hz) |
| LAN | 2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN |
| USB | 4 x USB 3.0, 2 x USB 2.0 |
| Serial Port | COM1: RS-232, COM2: RS-232/422/485 |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC 662) |
| Internal Connectors | |
| Mini PCIe | 1 x full size Mini PCIe, support WLAN/WWM module |
| M.2 | 1 x M.2 BKey 2280 |
| SATA 3.0 | 1 x SATA 3.0 |
| Power Supply | |
| Power Input | 24V DC |
| Watchdog | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Physical Characteristics | |
| Dimensions | 220 x 226 x 68mm (L x W x H) |
| Weight | 3.0 Kg |
| Installation | Wall mounting |
| Environment | |
| Operating Temperature | -20~50°C (with airflow 0.7 m/s) |
| Storage Temperature | -40~85°C |
| Operating Humidity | 95% @ 40°C (Non-condensing) |
| Certifications | |
| EMC | CE, FCC |
Product Models
| Model | CPU | Max TDP | Turbo Frequency | Core | Thread | LAN | USB 3.0 | USB 2.0 | COM | Audio | SIM | SATA 3.0 | VGA | DP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E500-01 | Pentium G4560 | 54W | 3.50GHz | 2 | 4 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-02 | i5-6400 | 65W | 3.30 GHz | 4 | 4 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-03 | i7-7700 | 65W | 4.20GHz | 4 | 8 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-04 | i5-8400 | 65W | 4.00GHz | 6 | 6 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-05 | i7-8700 | 65W | 4.60GHz | 6 | 12 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-06 | i3-9100 | 65W | 4.20GHz | 4 | 4 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-07 | i5-9400 | 65W | 4.10 GHz | 6 | 6 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| E500-08 | i7-9700 | 65W | 4.70GHz | 8 | 8 | 3 | 4 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
Interface Overview

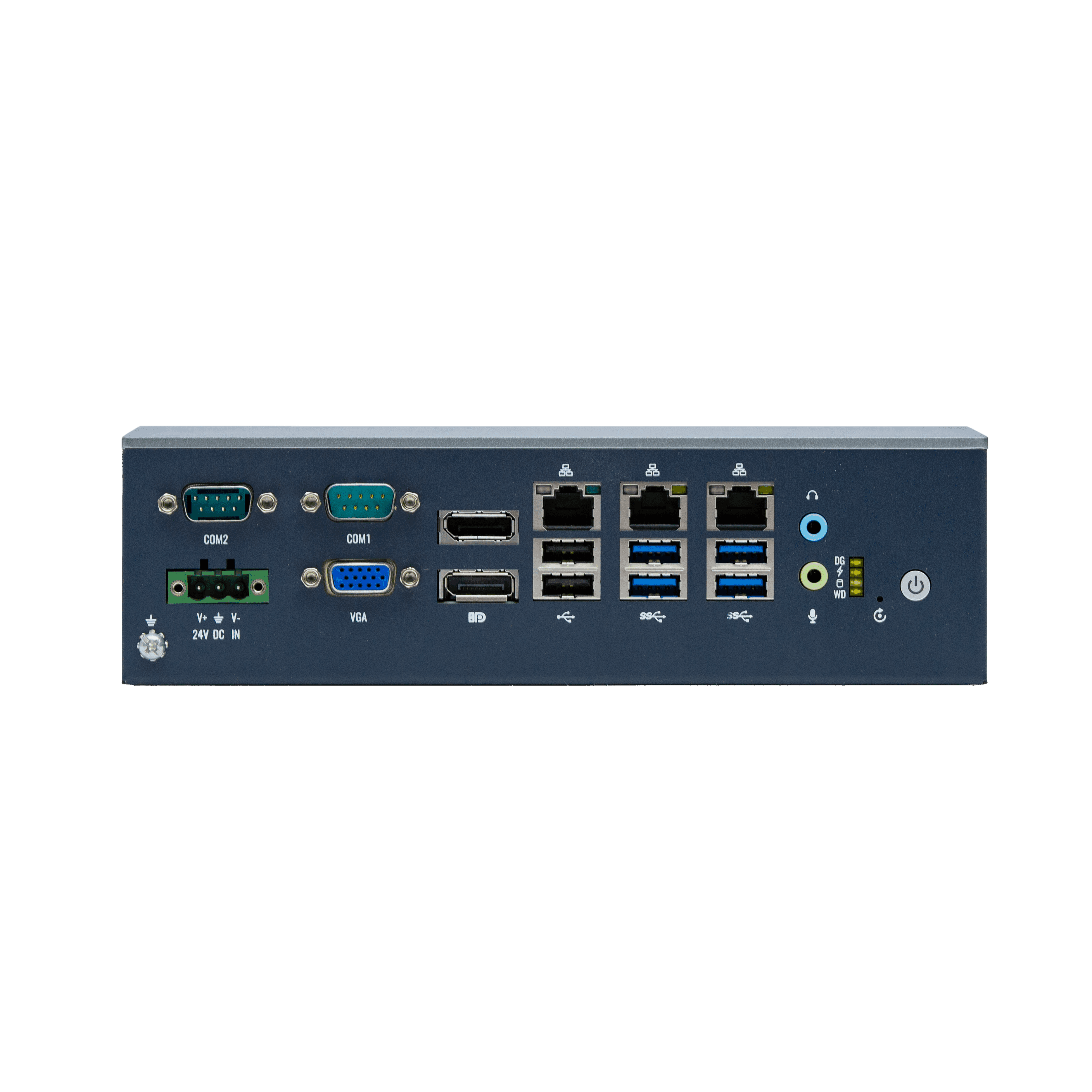

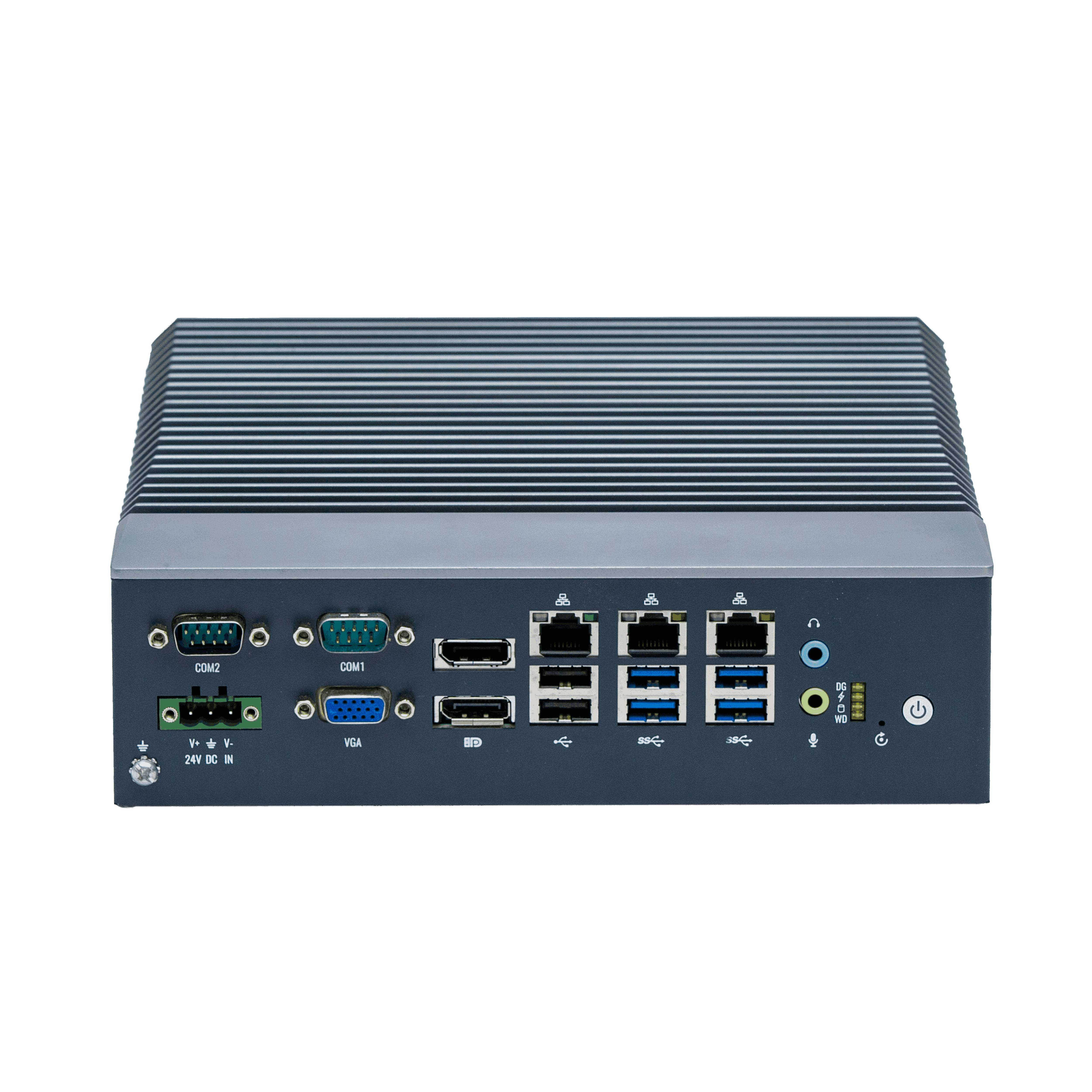

Rich Interface Design
The E500 Series provides comprehensive I/O interfaces to meet various industrial application requirements.
- 3 Gigabit Ethernet interfaces (2 Intel i210, 1 Intel i219)
- 2 DisplayPort and 1 VGA interface, supporting dual independent displays
- 6 USB interfaces (4 USB 3.0, 2 USB 2.0)
- 2 serial ports (1 RS-232, 1 RS-232/422/485)
- Audio interfaces (Line-out, Mic-in)
- 24V DC power input, 3 PIN Phoenix terminal
- Supports 4G and Wi-Fi module expansion
Operating System Support
Windows 10
Windows 10 IoT Enterprise
Windows 7
Only for 6th generation processors
CentOS
CentOS 7/8
Ubuntu
Ubuntu 18.04~24.04
Industry Applications
Industrial Automation
Suitable for PLC control, data acquisition, machine vision and other industrial automation scenarios, providing a stable and reliable operating environment.
Robotics Control
Provides powerful computing capabilities and rich interface support for industrial robots, enabling precise motion control and real-time data processing.
Digital Signage
Supports multiple display outputs, suitable for digital signage, information release systems, providing high-definition content playback and remote management functions.
