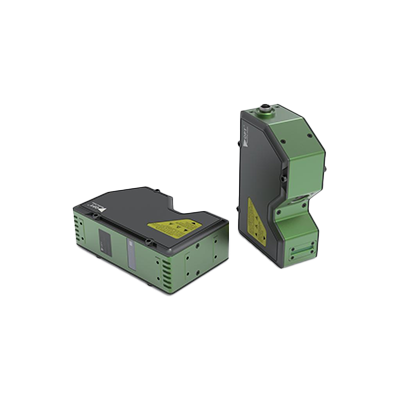

OS-LP Series
OS-LP 1000 Series
Compact 3D laser profiler with high precision for basic applications
- Reference distance: 30-110mm
- High-speed sampling: Up to 21,000 Fps
- IP67 protection rating
OS-LP 2000 Series
Enhanced performance with higher resolution and speed
- Reference distance: 30mm
- Ultra-high speed: Up to 24,000 Fps
- 2040 profile data points
OS-LP 3000 Series
Advanced series with extended measurement range
- Wide measurement range: 20-820mm
- High resolution: 3240 data points
- Blue/Red laser options
OS-LP 4000 Series
Premium series for demanding industrial applications
- High precision: ±0.03% F.S.
- Maximum resolution: 3840 data points
- High-speed: Up to 17,000 Fps
Product Specifications
| Parameter | OS-LP-1014 | OS-LP-1085 |
|---|---|---|
| Reference Distance (mm) | 30 | 110 |
| Z-axis (Height) (mm) | ±4 (F.S.=8) | ±31.5 (F.S.=63) |
| X-axis (Width) (mm) | 14 | 85 |
| Repeatability (μm) | 0.3 | 3 |
| Profile Data Count | 1600 items | 1600 items |
| Sampling Frequency | Up to 21,000 Fps | Up to 21,000 Fps |
| Light Source | Blue semiconductor laser (405 nm) | |
| Parameter | OS-LP-2013 |
|---|---|
| Reference Distance (mm) | 30 |
| Z-axis (Height) (mm) | ±4 (F.S.=8) |
| X-axis (Width) (mm) | 13 |
| Repeatability (μm) | 0.3 |
| Profile Data Count | 2040 items |
| Sampling Frequency | Up to 24,000 Fps |
| Light Source | Blue semiconductor laser (405 nm) |
| Parameter | OS-LP-3013 | OS-LP-3017 | OS-LP-3030 |
|---|---|---|---|
| Reference Distance (mm) | 55 | 20 | 52 |
| Z-axis (Height) (mm) | ±2 (F.S.=4) | ±3.25 (F.S.=6.5) | ±7.1 (F.S.=14.2) |
| X-axis (Width) (mm) | 13 | 17.8 | 30 |
| Repeatability (μm) | 0.2 | 0.3 | 0.6 |
| Profile Data Count | 3240 items | ||
| Sampling Frequency | Up to 24,000 Fps | ||
| Light Source | Blue/Red semiconductor laser (405 nm / 638 nm) | ||
| Parameter | OS-LP-4030 | OS-LP-4045 | OS-LP-4060 |
|---|---|---|---|
| Reference Distance (mm) | 60 | 60 | 75 |
| Z-axis (Height) (mm) | ±5.5 (F.S.=11) | ±10 (F.S.=20) | ±12 (F.S.=24) |
| X-axis (Width) (mm) | 30 | 45 | 60 |
| Repeatability (μm) | 0.4 | 0.7 | 0.8 |
| Profile Data Count | 3840 items | ||
| Sampling Frequency | Up to 17,000 Fps | ||
| Light Source | Blue semiconductor laser (405 nm) | ||
Key Features
High Precision
Linearity up to ±0.03% F.S., repeatability up to 0.3μm, ensuring stable output of high precision 3D images.
High-Speed Scanning
Maximum sampling frequency of 24000×2, easily coping with high-speed and high-dynamic detection tasks.
405nm Laser Source
Special laser light source with 405nm wavelength to accurately filter out stray light interference and avoid ambient light effects.
IP67 Protection
IP67 standard protection allows use in humid and dusty industrial environments.
High Dynamic Range
Equipped with new generation area array CMOS sensors, adapting to various detection needs.
Irregular Reflection Removal
Special laser design minimizes irregular reflection, effectively solving "bright spots" at laser edges.

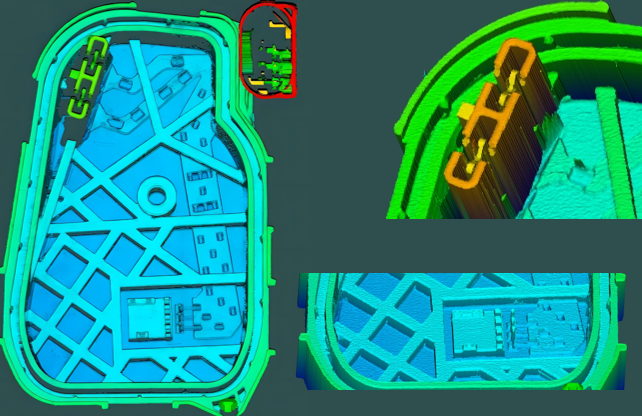

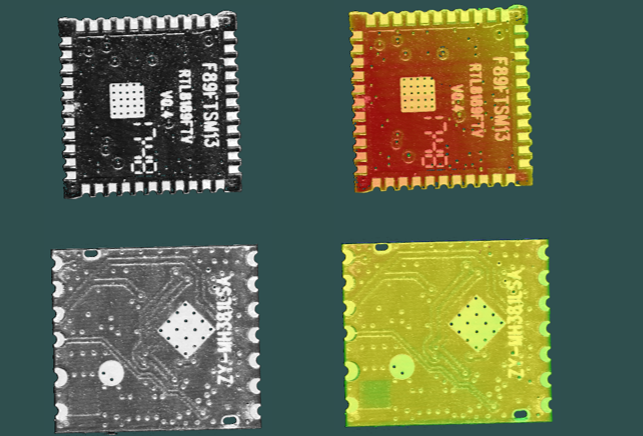

Point Cloud Visualization
High-Precision 3D Point Cloud Data
Our 3D laser profiler generates high-quality point cloud data with 3840 data points per profile, accurately capturing object surface contours for various complex industrial measurement scenarios.
- Sub-millimeter accuracy to meet the most stringent measurement requirements
- Real-time data processing for immediate measurement results
- Strong anti-interference capability, adaptable to various industrial environments
- Compatible with mainstream CAD software for easy data integration
SDK Support
Halcon
VisionPro
EVision
LabVIEW
C/C++
C#
Industry Applications
3C Products

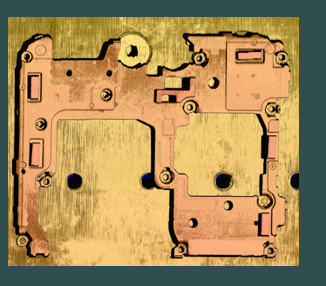

Mobile phone housing segment difference detection, flatness detection of mobile phone frames and notebook housings, cutoff slot size measurement.
Automotive
Automotive interior welding inspection, speeder BOX detection, and various component measurements.
Semiconductor

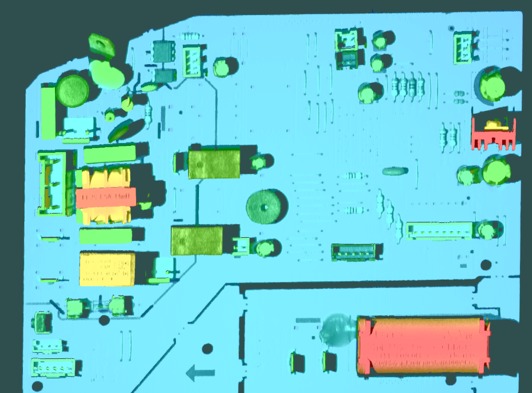

PCB component inspection, connector PIN harness detection, BGA tin ball height detection, and circuit board PIN detection.
