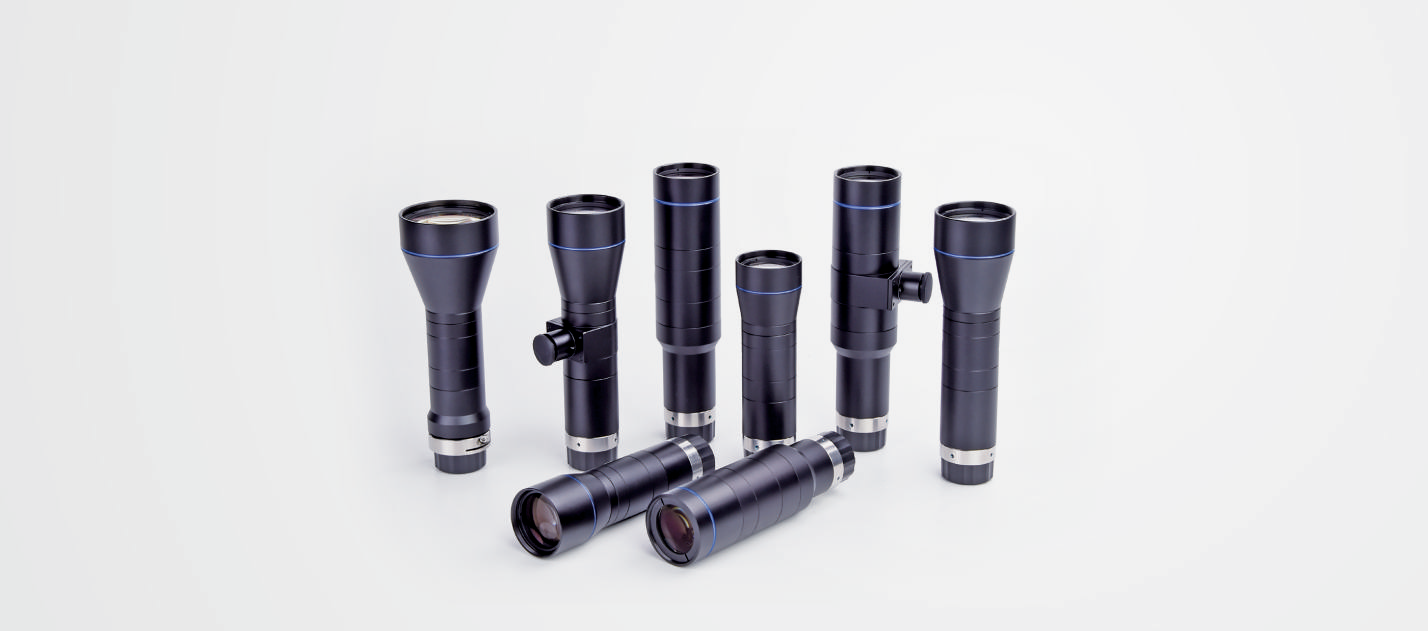

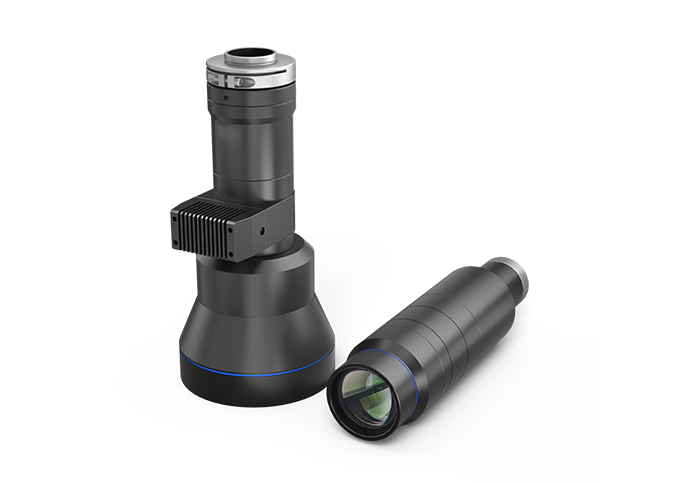

Hippo Series
High Precision Telecentric Lenses for Machine Vision
The Hippo Series offers high resolution, low distortion telecentric lenses compatible with cameras up to 1.1" sensor size, with magnification options from 0.3X to 4X.
Product Overview
High Performance Telecentric Lenses
The Hippo Series telecentric lenses provide exceptional optical performance for demanding machine vision applications, featuring high resolution, low distortion, and excellent telecentricity.
With a wide magnification range from 0.3X to 4X, these lenses are suitable for various inspection and measurement tasks across multiple industries.
- Compatible with cameras up to 1.1" sensor size
- High resolution and low distortion
- Optional built-in coaxial illumination
- Wide magnification range: 0.3X to 4X
- Excellent telecentricity for precise measurements
Key Features
High Resolution
Delivers sharp, clear images with high resolution capabilities for detailed inspection and measurement.
Low Distortion
Minimal distortion ensures accurate measurements and reliable inspection results.
Excellent Telecentricity
Superior telecentric design provides consistent magnification regardless of object distance.
Coaxial Illumination Options
Optional built-in coaxial point or surface illumination for enhanced imaging of reflective surfaces.
Technical Specifications
| No. | Model | WD (mm) | Mag. | Sensor Ø (mm) | Aperture (F/#) | Distortion (Max.) | DOF (mm) | MTF30 (lp/mm) | Telecentricity (Max.) | O/T (mm) | Weight (kg) | FOV Ø (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | OPT-HP08-110-F6.5 | 110±2 | 0.3X | 18.4(1.1") | F6.5 | <0.1% | 5.96 | 145 | 0.10° | 292.6 | 0.86 | 61.33 |
| 2 | OPT-HP04-190-VI | 190±2 | 0.4X | 18.4(1.1") | F6.5~F44 | <0.1% | 3.35~22.69 | 145~25 | 0.10° | 381.6 | 0.719 | 46 |
| 3 | OPT-HP05-110-F6.5 | 110±2 | 0.5X | 18.4(1.1") | F6.5 | <0.2% | 2.15 | 145 | 0.10° | 284.6 | 0.52 | 36.80 |
| 4 | OPT-HP08-110-F6.5 | 110±2 | 0.8X | 18.4(1.1") | F6.5 | <0.1% | 0.84 | 145 | 0.10° | 278.7 | 0.51 | 23.00 |
| 5 | OPT-HP10-110-F7 | 110±2 | 1.0X | 18.4(1.1") | F7.0 | <0.1% | 0.58 | 130 | 0.10° | 273.6 | 0.36 | 18.40 |
| 6 | OPT-HP15-110-F7 | 110±2 | 1.5X | 18.4(1.1") | F7.0 | <0.2% | 0.26 | 135 | 0.10° | 275.6 | 0.46 | 12.27 |
| 7 | OPT-HP20-65-F7 | 65±2 | 2.0X | 18.4(1.1") | F7.0 | <0.1% | 0.14 | 130 | 0.10° | 233.6 | 0.46 | 9.20 |
| 8 | OPT-HP40-65-F12 | 65±2 | 4.0X | 18.4(1.1") | F11.8 | <0.1% | 0.06 | 80 | 0.10° | 252.6 | 0.51 | 4.60 |
Product Advantages
Precision Measurement
High telecentricity ensures accurate measurements regardless of object positioning, eliminating parallax errors.
Consistent Image Quality
Low distortion and high resolution provide consistent, reliable image quality across the entire field of view.
Versatile Applications
Wide magnification range and optional illumination make these lenses suitable for diverse inspection tasks.
Industrial Durability
Robust construction ensures reliable performance in demanding industrial environments.
Application Areas
Electronics Inspection
Precision measurement and defect detection for PCB components, connectors, and electronic assemblies.
Display Manufacturing
MARK point positioning and quality inspection for LCD screens, OLED displays, and touch panels.
LED Inspection
Defect detection and quality control for LED components, ensuring optimal performance and reliability.
Models with Coaxial Illumination
| No. | Model | WD (mm) | Mag. | Sensor Ø (mm) | Aperture (F/#) | Distortion (Max.) | DOF (mm) | MTF30 (lp/mm) | Telecentricity (Max.) | O/I (mm) | Weight (kg) | FOV Ø (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | OPF-HP03-110C-F6.5 | 110±2 | 0.3X | 18.4(1.1") | F6.5 | <0.1% | 5.96 | 145 | 0.10° | 292.7 | 0.92 | 61.33 |
| 10 | OPF-HP03-110FC-F6.5 | 110±2 | 0.3X | 18.4(1.1") | F6.5 | <0.1% | 5.96 | 145 | 0.10° | 292.7 | 0.92 | 61.33 |
| 11 | OPF-HP05-110C-F6.5 | 110±2 | 0.5X | 18.4(1.1") | F6.5 | <0.2% | 2.15 | 145 | 0.10° | 284.7 | 0.88 | 36.80 |
| 12 | OPF-HP05-110FC-F6.5 | 110±2 | 0.5X | 18.4(1.1") | F6.5 | <0.2% | 2.15 | 145 | 0.10° | 284.7 | 0.88 | 36.80 |
| 13 | OPF-HP08-110C-F6.5 | 110±2 | 0.8X | 18.4(1.1") | F6.5 | <0.1% | 0.84 | 145 | 0.10° | 278.7 | 0.87 | 23.00 |
| 14 | OPF-HP08-110FC-F6.5 | 110±2 | 0.8X | 18.4(1.1") | F6.5 | <0.1% | 0.84 | 145 | 0.10° | 278.7 | 0.87 | 23.00 |
| 15 | OPF-HP10-110C-F7 | 110±2 | 1.0X | 18.4(1.1") | F7.0 | <0.1% | 0.58 | 130 | 0.10° | 273.6 | 0.41 | 18.40 |
| 16 | OPF-HP10-110FC-F7 | 110±2 | 1.0X | 18.4(1.1") | F7.0 | <0.1% | 0.58 | 130 | 0.10° | 273.6 | 0.41 | 18.40 |
