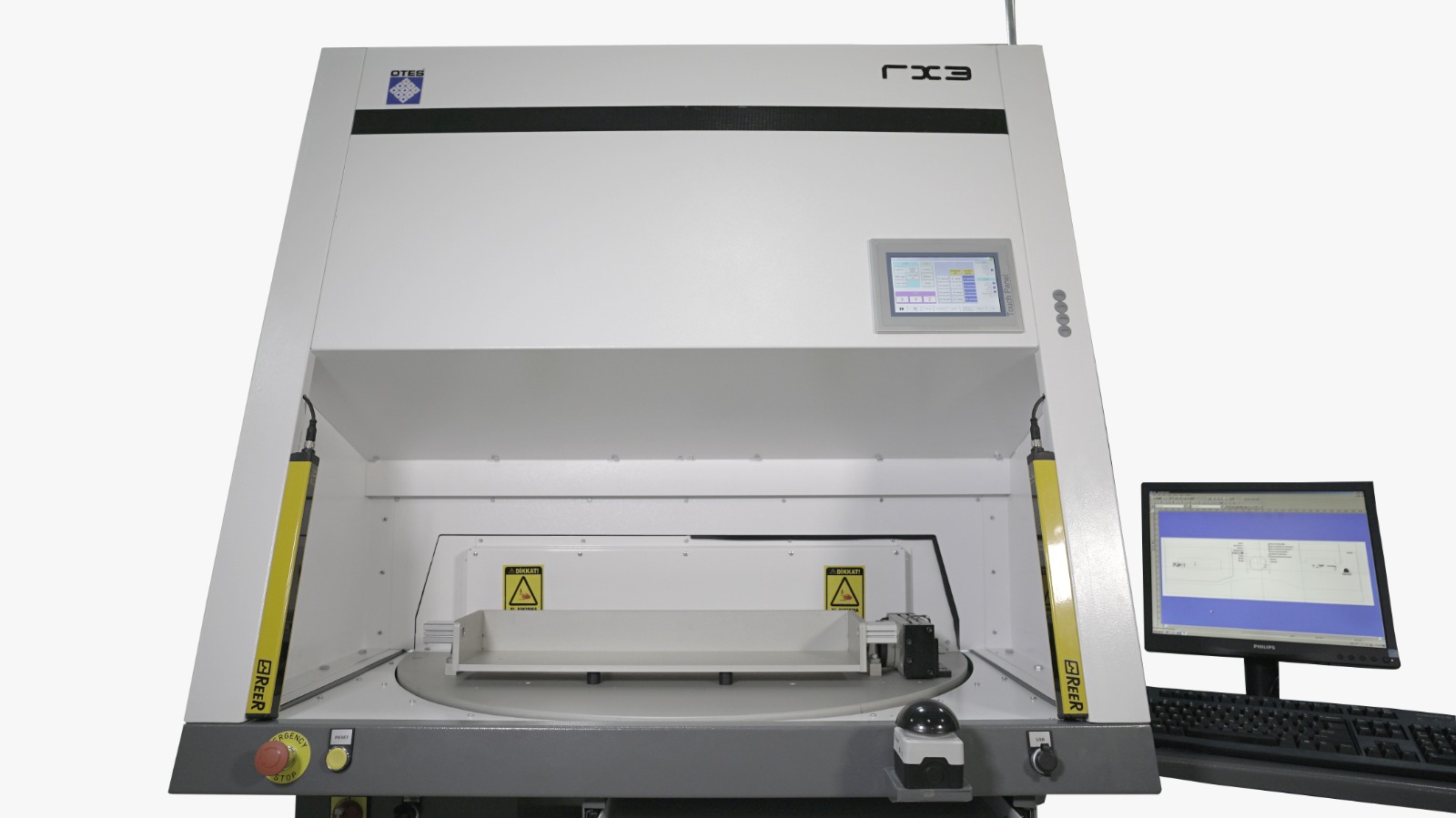

RX3 Laser Marking Station
High-Precision, High-Efficiency Industrial Laser Marking Solution
The RX3 laser marking station offers maximum flexibility for marking parts of different sizes and large components thanks to its Z-axis design, making it the ideal choice for industrial marking applications.
Product Overview
High-Precision Laser Marking Solution
The RX3 laser marking station utilizes advanced laser technology and precision mechanical design to provide efficient and accurate solutions for industrial part marking.
High-speed X and Y axis design minimizes time loss between two marking areas, increasing production efficiency.

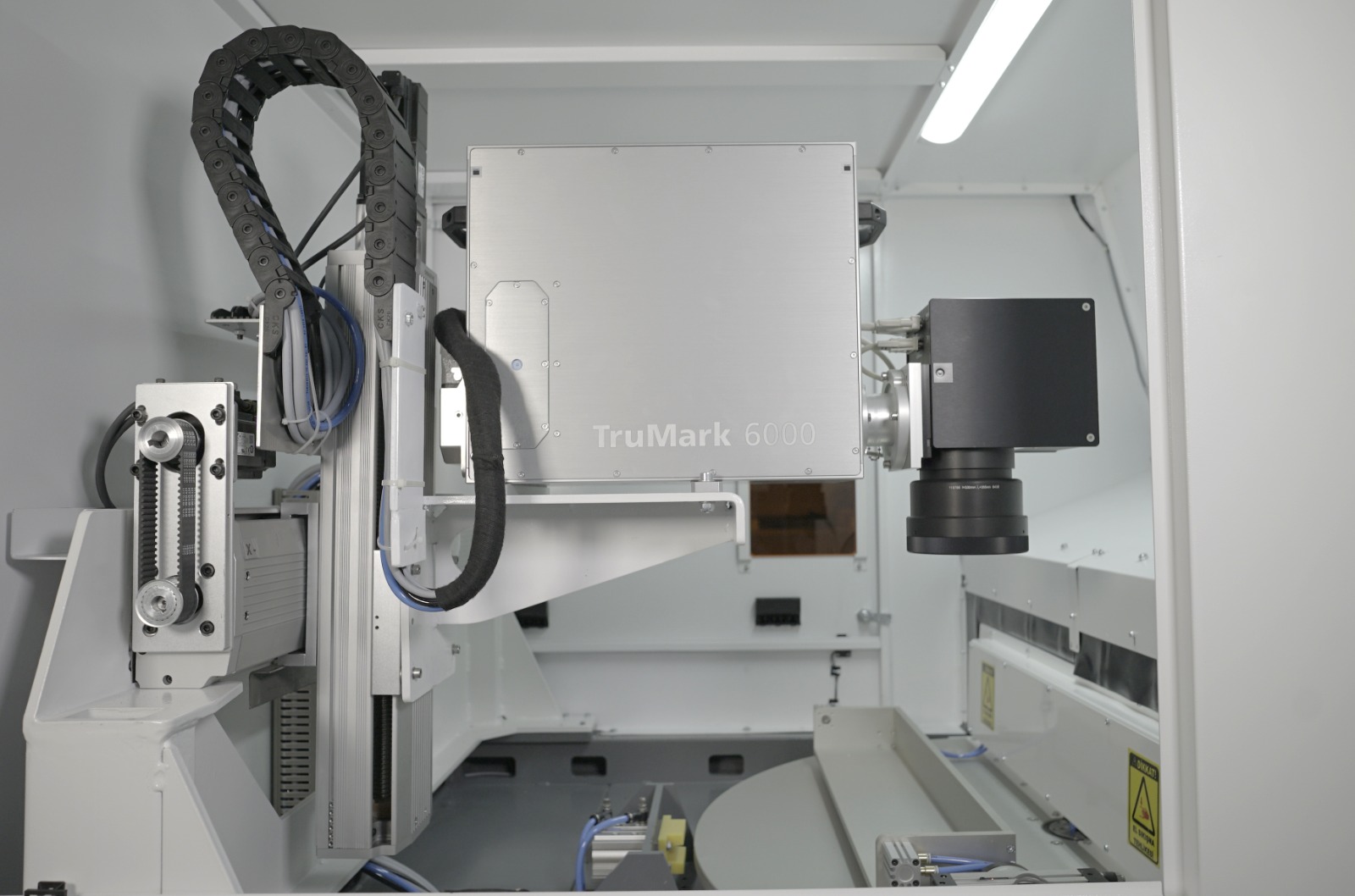

- Z-axis design adapts to parts of different sizes
- High-speed X/Y axes for increased production efficiency

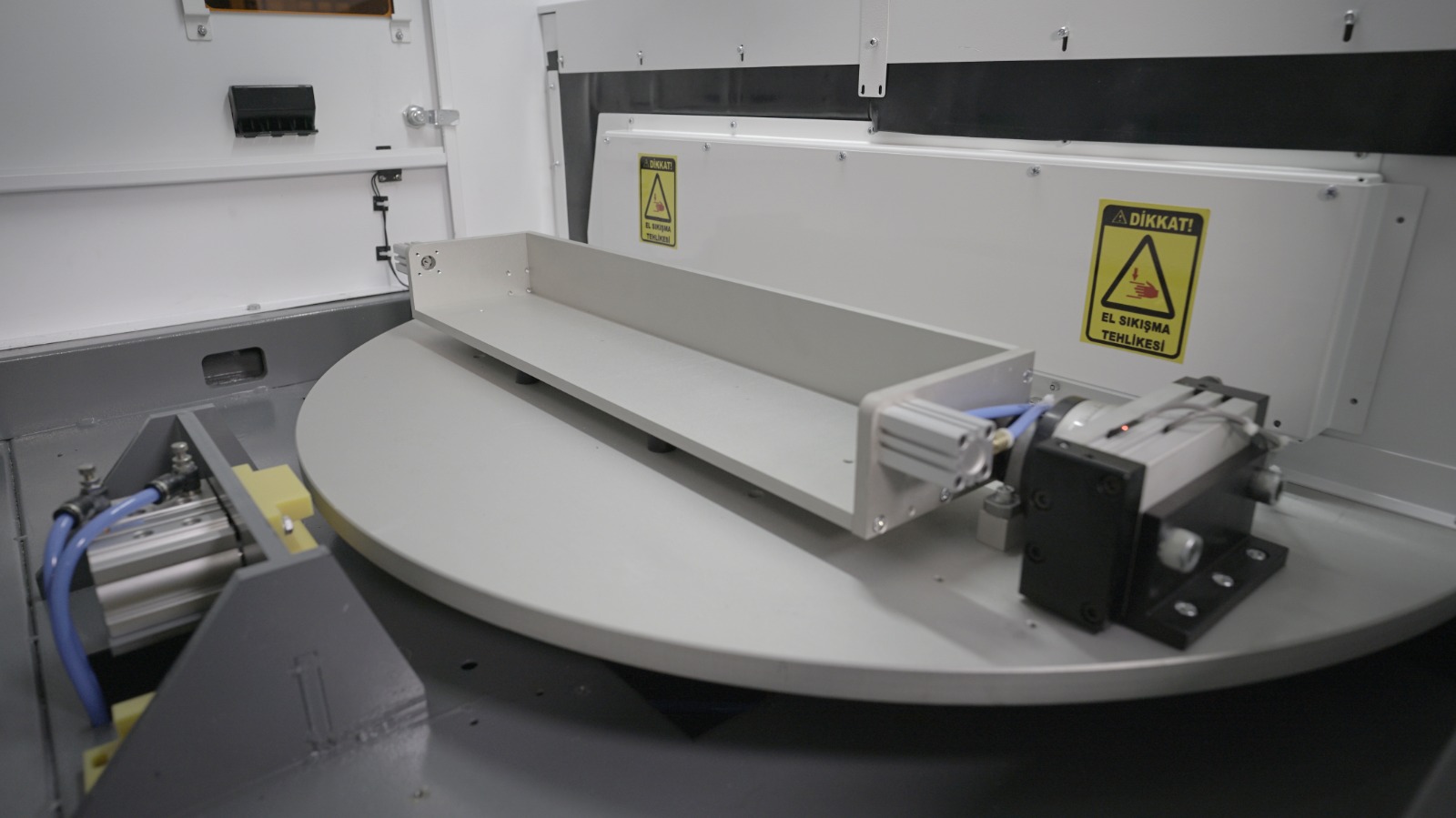

- 1000mm diameter high-precision rotary table
- Product loading/unloading time only 2 seconds
- ±0.01mm axis repeatability
Key Features
Easy Integration
Without affecting production plans and workflow, the laser system can be easily integrated into existing production lines.
Quick Product Change
Mark four different products in one recipe, eliminating time loss during product changes.
Easy Product Creation
Using TruTopsMark software, easily adapt drawings in various formats to the system.
User-Friendly Operation
Intuitive user interface for easy recipe creation and production readiness.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rotary Table | Aluminum 20mm, 1000mm diameter |
| Positioning Time | 2 seconds |
| Marking Area | 800 x 500 mm |
| Maximum Part Weight | 15 Kg |
| Axis Repeatability | ± 0.01 mm |
| Axis Working Speed | 400 mm/second |

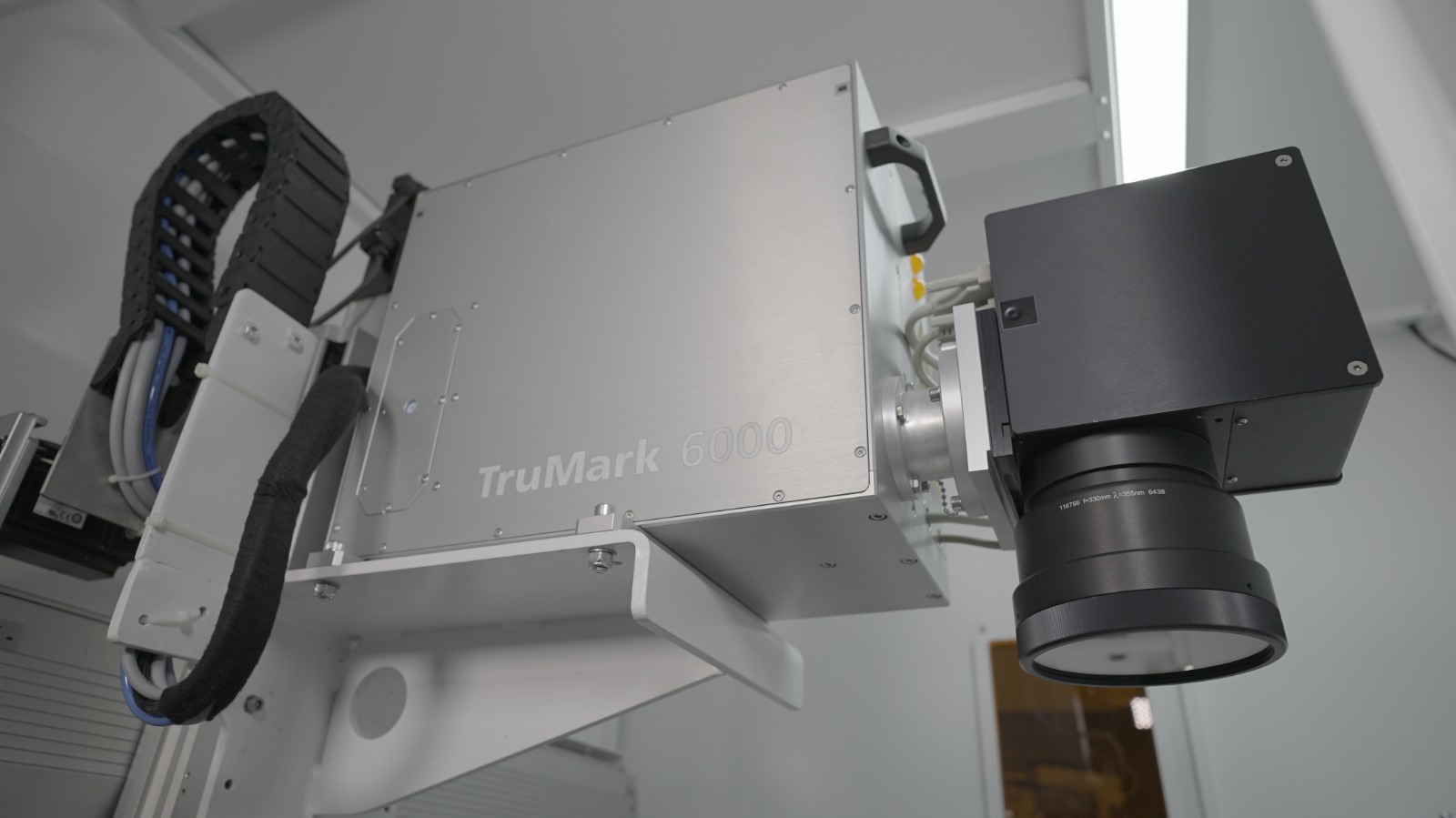

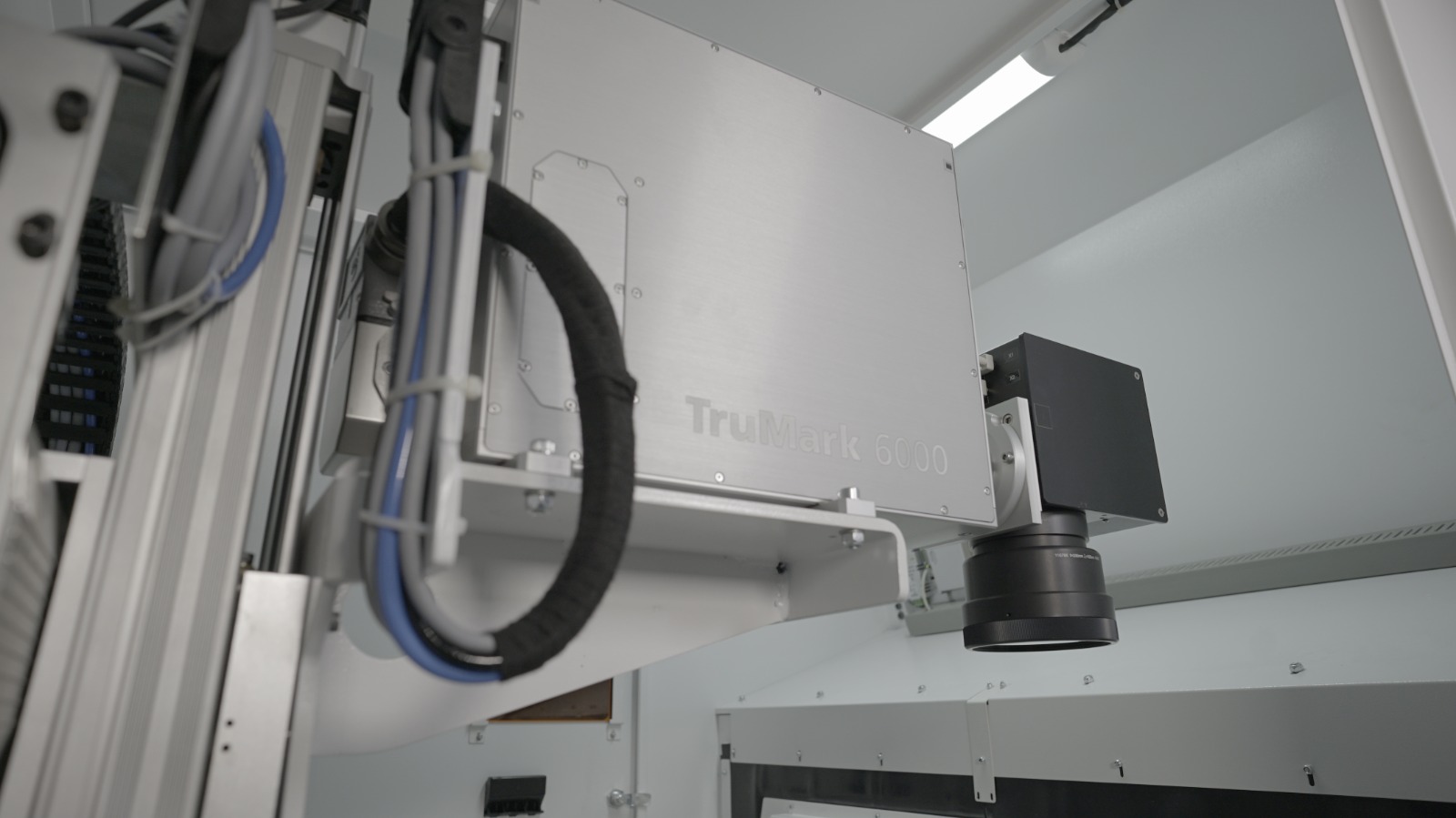

| Laser | TruMark 3000, 5000 and 6000 series |
| Dimensions (W x H x D) | 1200 x 2200 x 2010 mm |
| Weight | 750 Kg |
| Vacuum Unit | External "Fuchs TKFD104" |
Product Advantages
Maximum Flexibility
Z-axis design allows marking of different sizes and large parts, providing maximum application flexibility.
High Efficiency
High-speed X/Y axes and 2-second positioning time significantly increase production efficiency.
High Precision
±0.01mm axis repeatability ensures accurate marking every time.
Easy Integration
Modular design for easy integration into existing production lines without disrupting workflow.
Application Areas
Automotive Components
Permanent marking and traceability for engine parts, transmission components, and other automotive parts.
Electronic Components
High-precision marking for PCB boards, chips, and electronic assemblies ensuring product traceability.
Tools & Molds
Permanent identification for tools, molds, and fixtures, facilitating inventory management and lifecycle tracking.
