Product Features
High Precision Stroke
Stroke range 38/57µm with accuracy up to 0.15% F.S.
High Resonant Frequency
Resonant frequency up to 20kHz, suitable for high-speed applications
High Push/Pull Force
Push/pull force up to 1200/200N with stiffness of 25/15N/µm
Customization Available
Custom solutions available based on customer requirements
Technical Specifications
| Model | Travel Range [µm] ±10% | Stiffness [N/µm] ±20% | Push/Pull Force [N] | Capacitance [µF] ±20% | Resonant Frequency [kHz] | Length L [mm] ±0.3 |
|---|---|---|---|---|---|---|

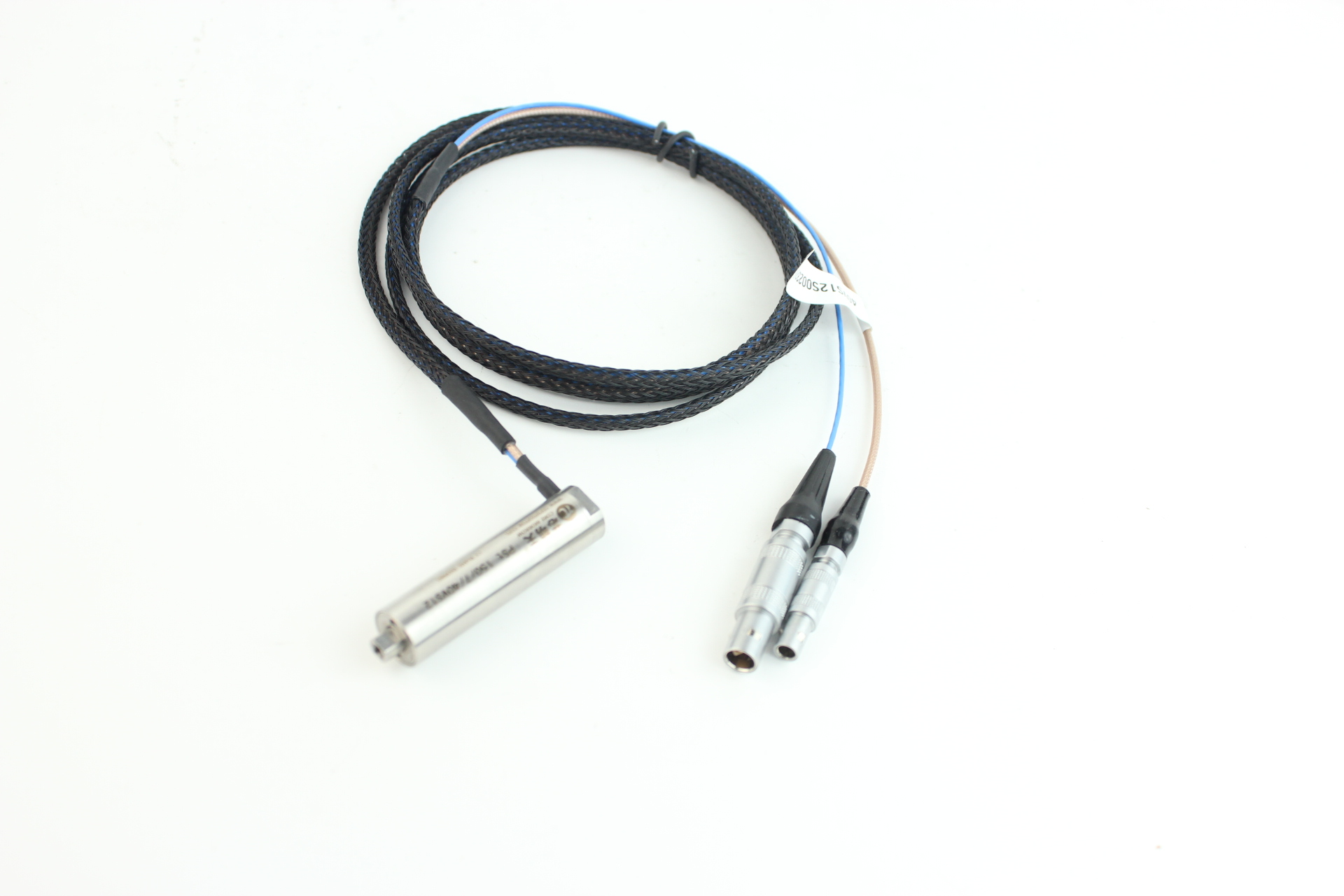

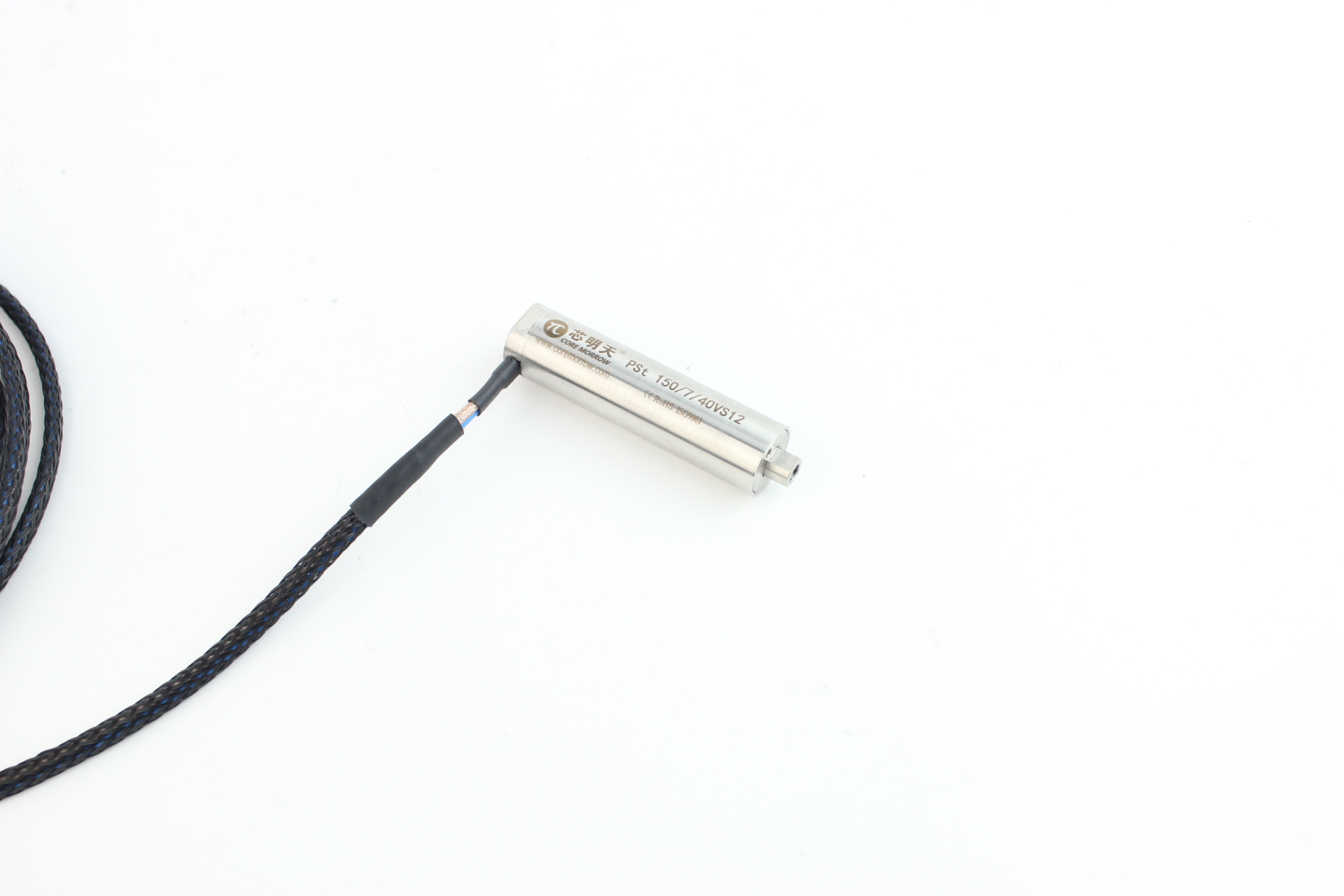

| PSt150/7/40 VS12 | 38 | 25 | 1200/200 | 3.6 | 20 | 46 |

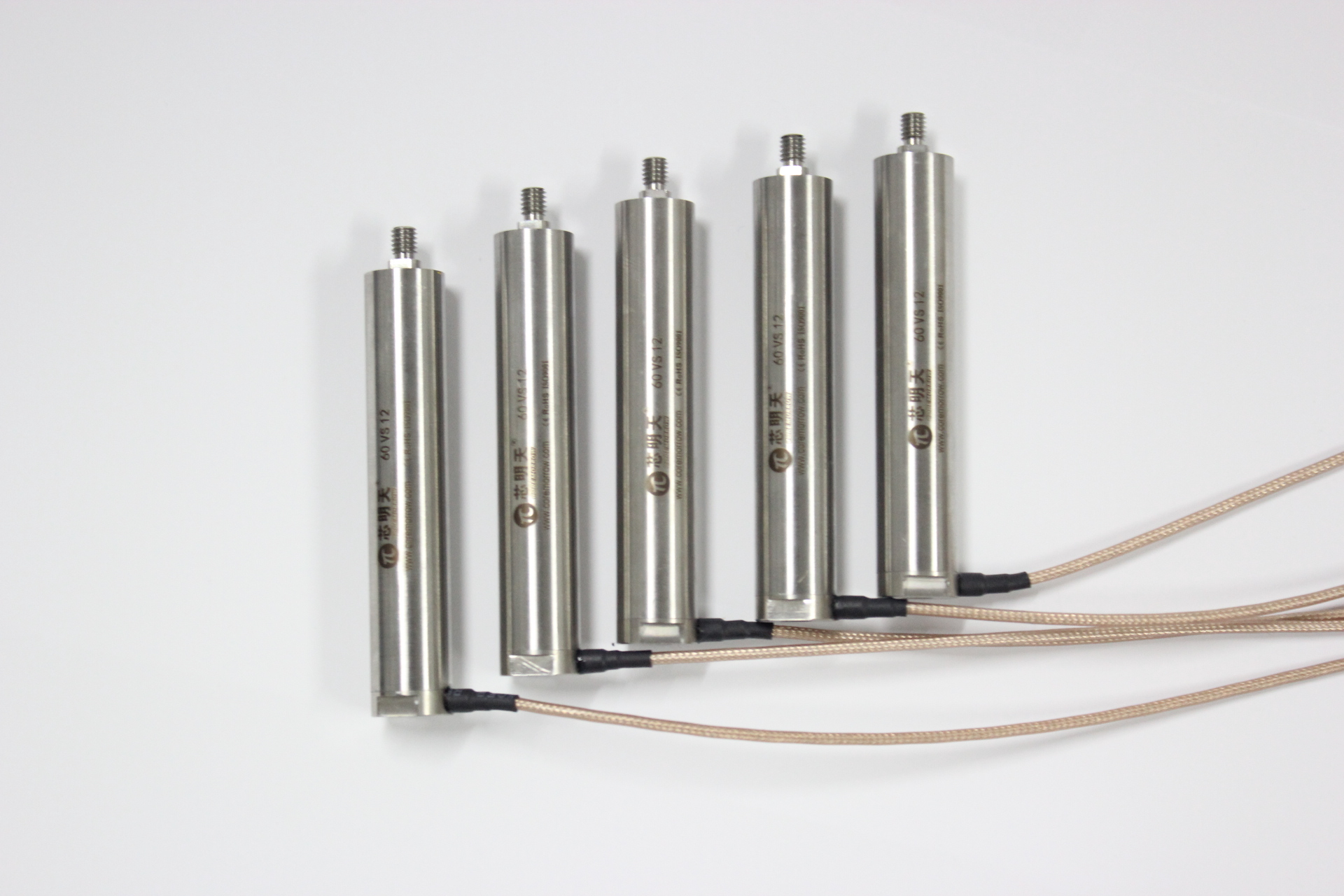

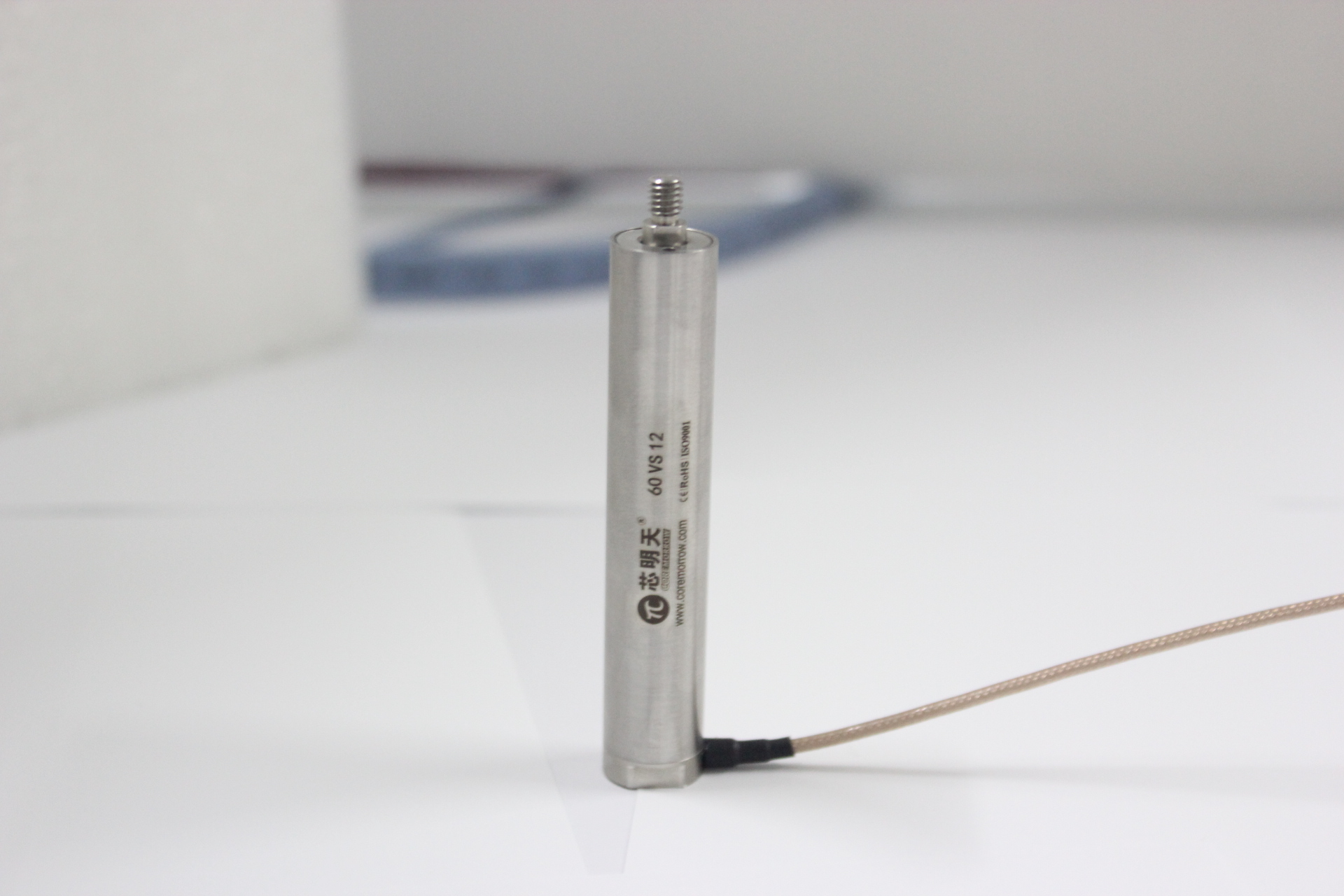

| PSt150/7/60 VS12 | 57 | 15 | 1200/200 | 5.4 | 15 | 64 |
Adapter Options
Plane
Plane adapter
Sphere
Sphere adapter
Internal Thread
Internal thread adapter
External Thread
External thread adapter
Piezo Controller
High-Performance Piezo Controller

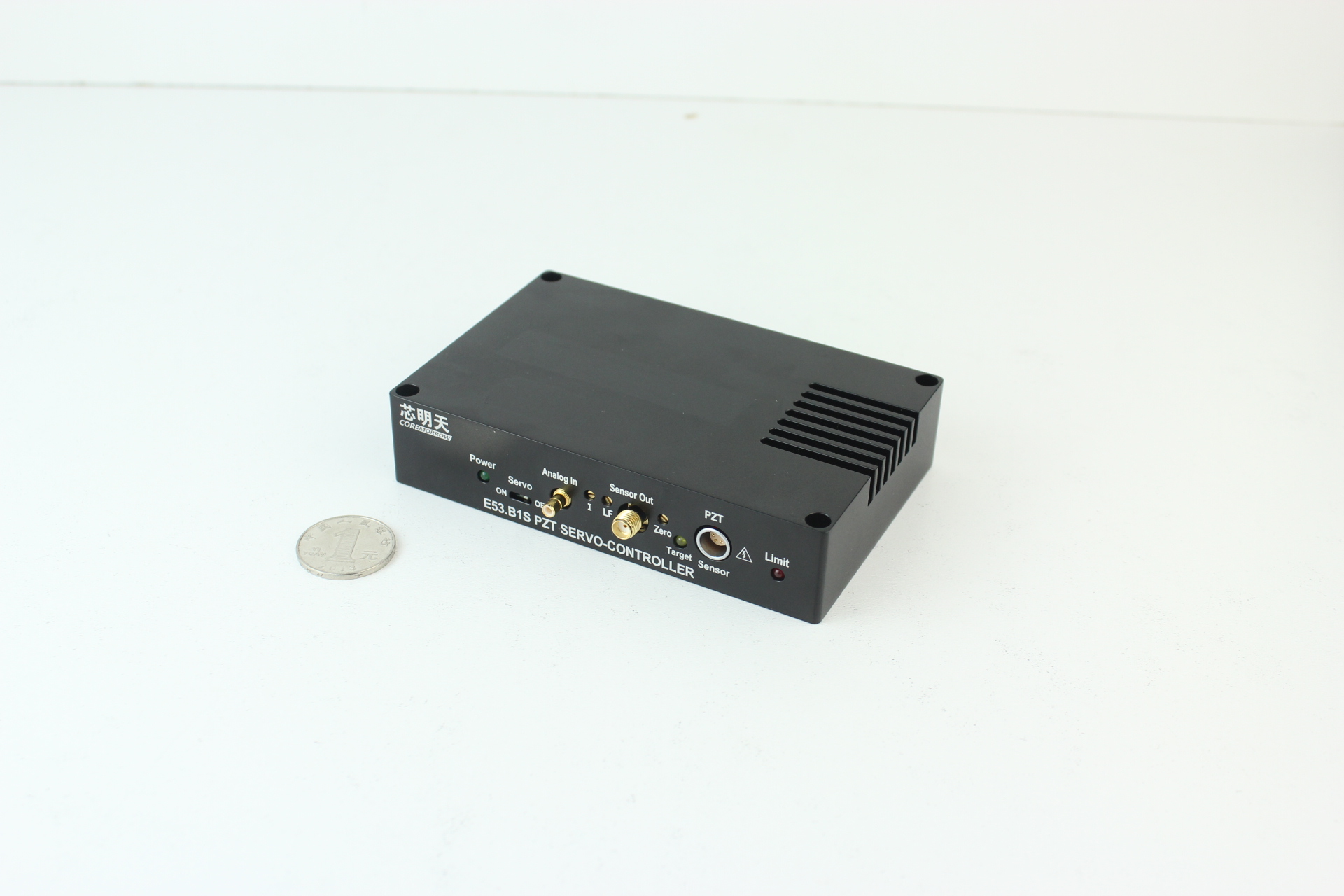

The E53.B piezo controller is specifically designed for high-precision piezo actuators, providing precise closed-loop control.
- 1-channel closed-loop control
- Analog input: 0~10V
- Compact size: 105×27.5×81.5mm
- Average current: 80mA
- Rated power: 10W
- Bandwidth: 10kHz
- Power supply: 24VDC
Controller Technical Specifications
| Parameter | E53.B | Unit |
|---|---|---|
| Channel | 1 | - |
| Nominal analog input voltage | 0~10 | V |
| Nominal output voltage | 0~120(0~150 option) | V |
| Peak current | 1 | A |
| Average current | 80 | mA |
| Output rated power | 10 | W |
| Bandwidth | 10 | kHz |
| Ripple voltage | 10(2.2µF load) | mVpp |
| PZT connector | LEMO(single-core) | - |
| Control input connector | SMB | - |
| Sensor | SG5 | mm |
| Sensor connector | LEMO(four-core) | - |
| Sensor output connector | SMB | - |
| Temperature range | 0~50 | °C |
| Power dissipation | <4 | W |
| Dimensions | 105×27.5×81.5 | mm |
| Weight | 0.28 | kg |
| Power supply | 24V(20V~30V)DC/1A | - |
